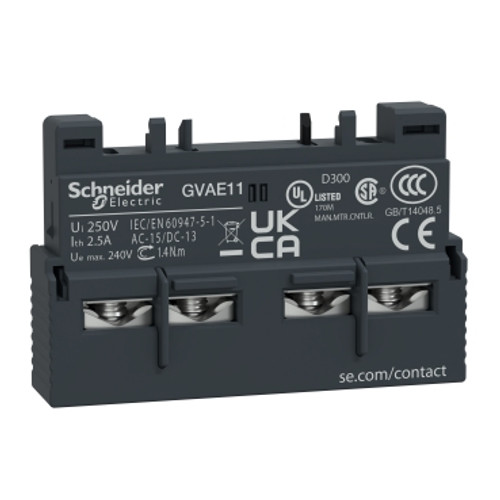

TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NO or 1NC instantaneous auxiliary contacts depending on the mounting orientation of the block. Rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on front side of the circuit breaker, connection by screw clamp terminals. Sold in lots of 10 units. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
- Range : TeSys, TeSys Deca
- Device short name : GVAE
- Product or Component Type : Auxiliary contact block
- Product Compatibility : GV2L, GV2P, GV2RT, GV3P, GV3L, GV2LE, GV2ME
- Mounting Location : Front side
- Pole contact composition : 1 NO/NC
- Quantity per Set : Set of 10
- [Ui] rated insulation voltage : 300 V UL 508, 300 V CSA C22.2 No 14, 250 V IEC 60947-1
- [Ue] rated operational voltage : 24...240 V AC, 24...60 V DC
- [Ith] conventional free air thermal current : 2.5 A
- Mechanical durability : 100000 cycles
- Minimum switching current : 5 mA
- Minimum switching voltage : 17 V
- Protection type : GG fuse 10 A, GB2CB06 circuit breaker 10 A
- Rated operational power in W : 15 W 48 V DC-13 100000 cycles, 24 W 24 V DC-13 100000 cycles, 9 W 60 V DC-13 100000 cycles
- Tightening torque : 12.39 lbf.in (1.4 N.m) screw clamp terminals
- Height : 0.43 in (11 mm)
- Width : 1.77 in (45 mm)
- Depth : 1.14 in (29 mm)
- Net Weight : 0.04 lb(US) (0.02 kg)
- Environmental characteristic : Normal environment
- Product Certifications : UKCA
- Category : US10I1122367
- Discount Schedule : 0I11
- GTIN : 3389110343427
- Returnability : Yes
- Country of origin : CZ
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 0.43 in (1.100 cm)
- Package 1 Width : 2.36 in (6.000 cm)
- Package 1 Length : 3.15 in (8.000 cm)
- Package 1 Weight : 0.46 oz (13.000 g)
- Unit Type of Package 2 : BB1
- Number of Units in Package 2 : 10
- Package 2 Height : 0.79 in (2.000 cm)
- Package 2 Width : 6.30 in (16.000 cm)
- Package 2 Length : 6.69 in (17.000 cm)
- Package 2 Weight : 4.94 oz (140.000 g)
- Unit Type of Package 3 : S02
- Number of Units in Package 3 : 220
- Package 3 Height : 5.91 in (15.000 cm)
- Package 3 Width : 11.81 in (30.000 cm)
- Package 3 Length : 15.75 in (40.000 cm)
- Package 3 Weight : 7.46 lb(US) (3.385 kg)
- Warranty : 18 months
