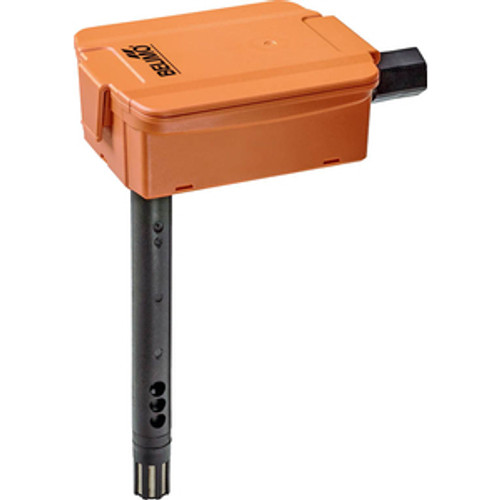

Duct sensor COâ‚‚ / VOC / Temperature active, 0...5 V, 0...10 V, Probe length 7" [180 mm], Probe diameter 0.77" [19.5 mm] Parts included: mounting flange, 1/2" NPT conduit adapter
- Voltage AC/DC : AC/DC\xa024\xa0V
- Electrical Connection : Terminals
- Measured Values : CO₂ ; VOC ; Temperature
- Output Signal : 0...5\xa0V ; 0...10\xa0V
- Measuring Range CO₂ : Default setting: 0...2000 ppm ; With A-22G-A05: 0...5000 ppm
- Measuring Range VOC : 0...100% VOC (0...5000 ppb TVOC equivalent)
- Measuring Range Temperature : 4...60°C [40...140°F]
- Output signal active note : output 0...5/10 V with jumper adjustable
- Probe Length : 7" [180 mm]
