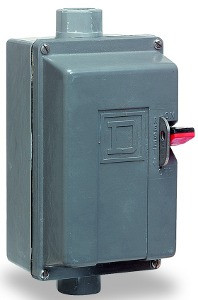

Square D Type M & T integral horsepower manual motor starters provide overload protection and On-Off control for small AC motors. Starters can be locked in the Off/Stop position to prevent inadvertent operation. Pilot lights and auxiliary contacts are field addable. Overload heater elements are ordered separately to match motor data. Starters are UL Recognized, CSA Certified and CE Marked for global applications. Integral Horsepower Manual Motor Starters. Designed for single or poly phase motors up to 10 HP. Designed for DC motors up to 2 HP. Provides easy manual “On-Off” control of small motors. Available with pushbutton or toggle operators. Provides reliable melting alloy overload protection for motors. Intended for industrial and commercial applications. Pilot lights and auxiliary contacts are available. Enclosed or open versions to suit most application environments. UL, CSA and CE approvals.
- Product : Manual Starter
- Type : M
- NEMA Size : M-1P
- Control Unit : Push-button
- Pilot Light : No indicator
- Horsepower Rating : 3 hp 115 V AC, 1 phase, 5 hp 230 V AC, 1 phase
- Voltage Rating : 600 V AC
- Number of Poles : 2P
- Starter Type : Non reversing
- Electrical Connection : Box lugs
- Overload Relay Type : Melting alloy
- Number of Thermal Units Required : 1
- Wire Gauge : AWG 14...AWG 6 copper
- Auxiliary Contacts : Without
- Height : 12.13 in (308.10 mm)
- Width : 6.5 in (165.10 mm)
- Depth : 6.41 in (162.81 mm)
- Certifications : CSA LR60905 class 3211 05, UL listed file E42243 CCN NLRV
- NEMA Enclosure Rating : NEMA 4/4X glass polyester
- Category : US10CP121103
- Discount Schedule : 0CP1
- GTIN : 785901182740
- Returnability : Yes
- Country of origin : MX
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 6.90 in (17.526 cm)
- Package 1 Width : 8.20 in (20.828 cm)
- Package 1 Length : 13.20 in (33.528 cm)
- Package 1 Weight : 8.04 lb(US) (3.647 kg)
- Warranty : 18 months
