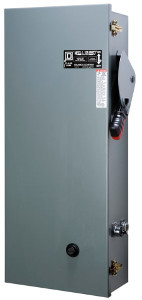

Well-Guard pumping plant panels are designed for pumping applications. These panels provide extra space for field installation of auxiliary equipment. These panels use Type S non-reversing magnetic starters. Panel has a 30A fusible disconnect switch for Class H or K fuses. This panel has a 3 pole NEMA Size 1 non-reversing starter that has a 27 ampere rating. This NEMA Size 1 starter has maximum of 3 HP, 5 HP, 7.5 HP and 10 HP ratings three phase. This non-reversing NEMA motor starter has a Motor Logic overload relay with a 9A to 27A range to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. The starters in these panels are available with a wide variety of replaceable coil voltages. The starter in this device has a 440/480 VAC 50/60 Hz operating coil wired for common control. A painted sheet steel NEMA 3R rainproof enclosure is used to protect this starter. Enclosure is 39.05 inches tall, 13.73 inches wide and 9.70 inches deep. A wide variety of accessories are available for Type S starters. This pump panel is supplied with a START momentary push button and a HAND/OFF/AUTO selector switch. These NEMA pump panels with Type S starters are UL listed and marked Suitable for use as Service Equipment. They are also CSA certified.
- Product : Well-Guard Control
- Type : class 8940 type SS
- Device Application : Pumping
- Control Circuit Type : Common control circuit
- Control Circuit Voltage : 480 V AC 60 Hz, 440 V AC 50 Hz
- Line Rated Current : 27 A
- Number of Poles : 3
- Horsepower Rating : 10 hp 480 V AC, 3 phase
- Maximum Voltage Rating : 600 V AC
- Control Units : Selector switch HAND-OFF-AUTO) , Push-button START)
- Disconnect Type : Fusible disconnect switch
- Associated fuse rating : 30 A
- Fuse type : H or K
- Thermal overload type : Motor Logic solid state class 10/20
- Protection Type : Overload, Phase loss, Phase unbalance
- Device mounting : Surface
- Electrical Connection : Screw terminal
- NEMA size : 1
- Height : 39.06 in (992 mm)
- Width : 15.16 in (385 mm)
- Depth : 9.69 in (246 mm)
- NEMA Rating : NEMA 3R
- Enclosure type : Weatherproof enclosure indoor/outdoor
- Product Certifications : UL Listed, NEMA
- Category : US10CP121388
- Discount Schedule : 0CP1
- GTIN : 785901011781
- Returnability : Yes
- Country of origin : MX
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 10.00 in (25.4 cm)
- Package 1 Width : 18.40 in (46.736 cm)
- Package 1 Length : 36.60 in (92.964 cm)
- Package 1 Weight : 58.00 lb(US) (26.308 kg)
- Unit Type of Package 2 : PAL
- Number of Units in Package 2 : 8
- Package 2 Height : 42.00 in (106.68 cm)
- Package 2 Width : 40.00 in (101.6 cm)
- Package 2 Length : 48.00 in (121.92 cm)
- Package 2 Weight : 509.46 lb(US) (231.086 kg)
- Warranty : 18 months
