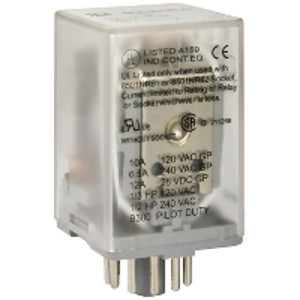

8501K General Purpose Plug-in Relay|11 pin plug-in|Poles Description: 3 Poles|Switch Function: DPDT|Control Circuit Voltage: 120V AC|Local Signaling: Indicator light when relay energized|Rated Power in HP: 1 HP at 277V, 0.33 HP at 120V
- [Uc] control circuit voltage : 120 V AC~~
- Brand : Square D
- By Schneider : Yes
- Carbon footprint (kg CO2 eq, Total Life cycle) : 25
- Circularity Profile : No need of specific recycling operations
- Contacts Material : Silver alloy (AgNi)
- Depth : 1.4 in (35.6 mm)
- Final Result for Flywheel performance tracking : Non Flywheel
- Global Keywords : 10a resistive plug-in relay
- Global Keywords : 11 pin plug-in relay
- Global Keywords : 120vac plug-in relay
- Global Keywords : 1hp plug-in relay
- Global Keywords : 277ac plug in relay
- Global Keywords : 3 no + 3 nc plug-in relay
- Global Keywords : 300v ac switching plug-in relay
- Global Keywords : 30v dc switching plug-in relay
- Global Keywords : 3pdt plug-in relay
- Global Keywords : Agni contacts plug-in relay
- Global Keywords : General purpose plug-in relay
- Global Keywords : Schneider
- Global Keywords : Schneider electric
- Global Keywords : Se
- Global Keywords : Socket mount plug-in relay
- Global Keywords : Square d 8501 type k relay
- Global Keywords : Tubular relay
- Global Keywords : Type kp plug-in relay
- Global warming ; Total life cycle? : 25 kg CO2 eq.
- Height : 2.66 in (67.56 mm)
- Local Signalling : Indicator light relay energised LED
- Manufacturer : Schneider Electric
- maximum switching voltage : 30 V DC
- maximum switching voltage : 300 V AC
- Mounting Support : Socket
- Operating Time : 20 ms - drop-out
- Operating Time : 20 ms - pick-up
- Override : Without test button
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : No
- Product Certifications : CE
- Product Certifications : CSA
- Product Certifications : UL Listed
- Product Certifications : UL Recognized
- Product Compatibility : 8501NR61
- Product Compatibility : 8501NR62
- Product Or Component Type : Relay
- rated breaking capacity : 1.5 A 240 V AC inductive control circuit UL 508
- rated breaking capacity : 10 A 277 V AC resistive control circuit UL 508
- rated breaking capacity : 10 A 30 V DC resistive control circuit UL 508
- rated breaking capacity : 3 A 120 V AC inductive control circuit UL 508
- Rated Power In Hp : 0.33 hp 120 V AC
- Rated Power In Hp : 1 hp 277 V AC
- REACh free of SVHC : Yes
- Relay Type : General purpose
- shape of pin : Tubular
- Switch Function : 3PDT
- Take-back : No
- Temperature Ambient Operating Range : -40…55 °C (-40…131 °F)
- UNSPSC Classification v19 : 39122325
- UNSPSC Classification v23 : 39122325
- Width : 1.4 in (35.6 mm)
