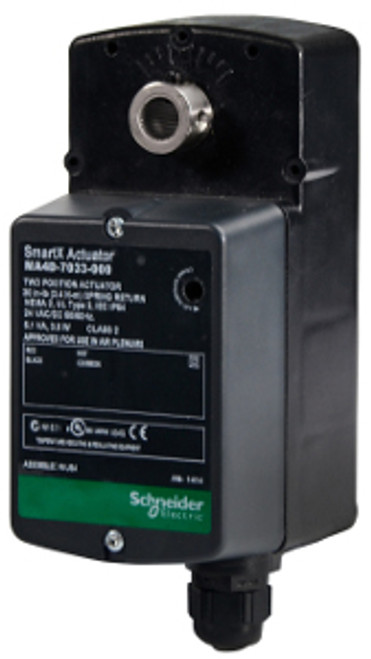

MS4D-7033-100

[Us] rated supply voltage :

20...30 V DC~~

[Us] rated supply voltage :

24 V AC/DC

Actuator Product Range :

SmartX Actuator

Actuator Product Series :

MS4D-7xxx

Actuator Type :

Electric

analogue input range :

2...10 V DC

Auxiliary Switch :

No

Brand :

Schneider Electric

By Schneider :

Yes

Conduit Connection :

1/2 in

Control Signal :

Proportional/Modulating

Current Consumption :

120 mA

Feedback Signal :

2 to 10 VDC

Final Result for Connectable :

Connectable ready

Final Result for Flywheel performance tracking :

Connectable products

Hold-In Power Consumption In W :

1.4 W

Humidity :

15…95 % non-condensing

Insulation Class :

Class II

IP Protection Rating :

IP11

Lead Length :

3 ft

Leads and Connections :

Plenum

Loss of Power Type :

Spring return

Manufacturer :

Schneider Electric

Material :

Polymer: housing

Mechanical Movement :

Rotary

Motor Type :

Brush DC motor

Override :

Automatic reset

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

No

Position Indicator :

Housing Scale

Power Consumption Running VA :

6.1 VA AC

Power Consumption Running Watts :

3.4 W

Product Destination :

ball valves

Product Destination :

dampers

Product Or Component Type :

Actuator

Rotation :

93 °

Selection Tools :

Valve Selection Tool

Take-back :

No

Temperature Ambient Operating Range :

-22…140 °F (-30…60 °C)

Temperature Shipping and Storage Range :

-40…160 °F (-40…71 °C)

Tightening Torque :

30 lb.in

Tightening Torque :

3.4 N.m
