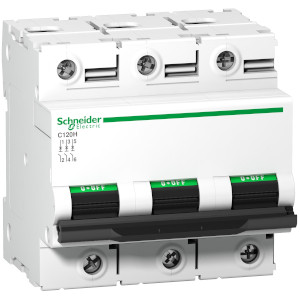

Acti 9 Miniature Circuit Breakers - C120H |Poles description : 3P |Number of protected poles : 3 |Network type : AC |Curve code : C |rated operational voltage :
- [Ics] rated service breaking capacity : 15 kA 100 % EN/IEC 60947-2 -~~
- [Ics] rated service breaking capacity : 15 kA 50 % EN/IEC 60947-2 - 220...240 V AC 50/60 Hz
- [Ics] rated service breaking capacity : 5 kA 50 % EN/IEC 60947-2 - 440 V AC 50/60 Hz
- [Ics] rated service breaking capacity : 7.5 kA 50 % EN/IEC 60947-2 - 380...415 V AC 50/60 Hz
- [Ics] rated service breaking capacity : 7500 A 50 % EN/IEC 60898-1 - 230...400 V AC 50/60 Hz
- [Ue] rated operational voltage : 220...240 V AC 50/60 Hz
- [Ue] rated operational voltage : 230...400 V AC 50/60 Hz
- [Ue] rated operational voltage : 380...415 V AC 50/60 Hz
- [Ue] rated operational voltage : 440 V AC 50/60 Hz
- [Ui] rated insulation voltage : 500 V AC 50/60 Hz EN/IEC 60947-2
- [Uimp] rated impulse withstand voltage : 6 kVEN/IEC 60947-2
- 9 mm pitches : 9
- Application : Distribution
- Brand : Schneider Electric
- breaking capacity : 10 kA Icu 440 V AC 50/60 Hz EN/IEC 60947-2
- breaking capacity : 15 kA Icu
- breaking capacity : 15 kA Icu 380...415 V AC 50/60 Hz EN/IEC 60947-2
- breaking capacity : 15000 A Icn 230...400 V AC 50/60 Hz EN/IEC 60898-1
- breaking capacity : 30 kA Icu 220...240 V AC 50/60 Hz EN/IEC 60947-2
- Breaking capacity code : H
- By Schneider : Yes
- Carbon footprint (kg CO2 eq, Total Life cycle) : 57
- Circularity Profile : No need of specific recycling operations
- Color : White
- comb busbar and distribution block compatibility : YES
- connection pitch : 1.06 in (27 mm) between phases
- Connections - Terminals : Tunnel type terminals 0.002…0.05 in² (1.5…35 mm²) flexible
- Connections - Terminals : Tunnel type terminals 0.002…0.08 in² (1…50 mm²) rigid
- contact position indicator : Yes
- curve code : C
- Depth : 2.9 in (73 mm)
- Device Short Name : C120H
- earth-leakage protection : Separate block
- Electrical Durability : 5000 cycles IEC 60947-2
- Final Result for Connectable : Not connectable
- Final Result for Flywheel performance tracking : Non Flywheel
- Global Keywords : Acti9 c120h
- Global Keywords : Acti9 mcb
- Global Keywords : Breaking capacity
- Global Keywords : Earth leakage
- Global Keywords : Electrical protection
- Global Keywords : Electrical threats
- Global Keywords : Mcb
- Global Keywords : Miniature circuit breaker
- Global Keywords : Overload
- Global Keywords : Protecting equipment
- Global Keywords : Protecting people
- Global Keywords : Short circuit
- Global warming ; Total life cycle? : 57 kg CO2 eq.
- Halogen content performance : Product contains halogen above thresholds
- Height : 3.2 in (81 mm)
- Indivisible Sale Qty : 1
- IP Degree of Protection : IP20 conforming to IEC 60529
- limitation class : 3 EN/IEC 60947-2
- Line Rated Current : 80 A 86 °F (30 °C)
- Local Signalling : ON/OFF indication
- locking options description : Handle sealable with cable diameter 0.7mm in OFF or ON position
- magnetic tripping limit : 5...10 x In
- Manufacturer : Schneider Electric
- Market Segment : Residential
- Market Segment : Small commercial
- Mechanical Durability : 20000 cycles
- Mounting Mode : Con clip
- Mounting Support : 35 mm symmetrical DIN rail
- Net Weight : 1.356 lb(US) (0.615 kg)
- Network Frequency : 50/60 Hz
- Network Type : CA
- number of protected poles : 3
- Number of Units in Package 2 : 4
- Number of Units in Package 3 : 24
- Operating Altitude : 6561.68 ft (2000 m)
- Override : Toggle
- Overvoltage Category : IV
- Package 2 GTIN : 13606480380393
- Package 2 Height : 3.35 in (8.500 cm)
- Package 2 Length : 12.99 in (33.000 cm)
- Package 2 Weight : 5.260 lb(US) (2.386 kg)
- Package 2 width : 3.66 in (9.300 cm)
- Package 3 GTIN : 43606480380394
- Package 3 Height : 11.81 in (30.000 cm)
- Package 3 Length : 15.75 in (40.000 cm)
- Package 3 Weight : 32.534 lb(US) (14.757 kg)
- Package 3 width : 11.81 in (30.000 cm)
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : Yes
- Pollution Degree : 3 IEC 60947-2
- Power losses per pole : 3.2 W
- Product Certifications : EAC
- Product Name : Acti9 C120
- Product Or Component Type : Miniature circuit-breaker
- Range : Acti9
- Relative Humidity : 95 % 131 °F (55 °C)
- SCIP Number : Ab76a2c8-39ad-4485-a07c-19f81f42d0a0
- Standards : EN/IEC 60898-1
- Standards : EN/IEC 60947-2
- suitability for isolation : Yes IEC 60947-2
- Take-back : No
- Temperature Ambient Operating Range : -22…140 °F (-30…60 °C)
- Temperature Shipping and Storage Range : -40…158 °F (-40…70 °C)
- Tightening Torque : 31.0 lbf.in (3.5 N.m)
- Total power losses : 9.6 W
- Toxic heavy metal free : Yes
- Trip Unit Technology : Thermal-magnetic
- tropicalisation : 2 IEC 60068-1
- Type Of Network : 3P
- Unit Type of Package 2 : BB1
- Unit Type of Package 3 : S03
- UNSPSC Classification v19 : 39121603
- UNSPSC Classification v23 : 39121603
- Volume of Package 2 : 2608.650 cm3
- Volume of Package 3 : 36000.000 cm3
- Warranty : 18 months
- Width : 3.2 in (81 mm)
- Wire Stripping Length : 0.6 in (15 mm)
