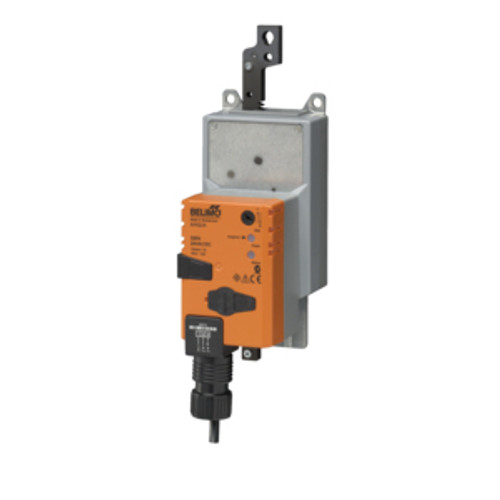

ConfigurableDamper Actuator, 200 N [45 lbf], Non fail-safe, AC/DC 24 V, On/Off
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 13 W
- Power Consumption (Holding) : 1.5 W
- Power Consumption For Wire Sizing : 23 VA
- Force : 200 N [45 lbf]
- Control Type : On/Off
- Direction Of Motion Motor : reversible with switch
- Manual Override : External push button
- Stroke : 1.6...4.0" [40...100 mm]
- Running Time (Motor) : 7 s / 100 mm
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
- Ambient Temperature : -22...122°F [-30...50°C]
