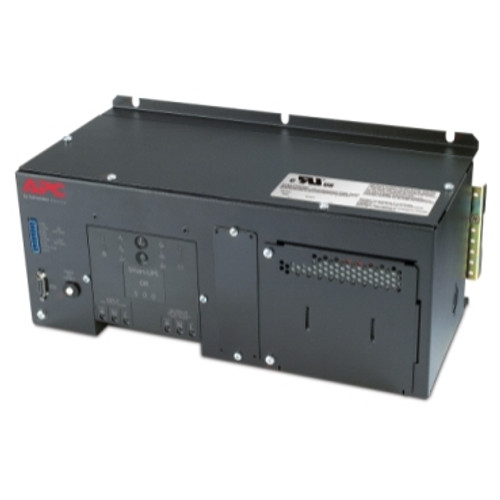

APC DIN Rail - Panel Mount UPS-without battery 500VA 120V
- acoustic level : 55 dBA~~
- After sales category ASC : 01 - Replace by the same Commercial Reference : new (ie not refurbished)
- Battery Charge Power (Watts) : 48 W rated
- battery curve : B
- Battery Life : 3…5 year(s)
- Battery power in VAH : 120 VAh runtime
- Battery Slots Empty : 1
- Battery Type : Lead-Acid battery
- Brand : APC Brand
- Channel status : Distribution
- Color : Black
- Configurators/Selectors : UPS Selector
- Configurators/Selectors : UPS Selector Business Power
- CR severity code : 06 - Product as a spare
- CR shelf life : 0
- curve equation : Efficiency
- curve load maximum : 100 %
- curve X-axis maximum : 100 %
- curve X-axis minimum : 0 %
- curve X-axis title : Load
- curve X-axis units : Percentage
- curve Y-axis maximum : 100 %
- curve Y-axis minimum : 50 %
- curve Y-axis title : Efficiency
- curve Y-axis units : Percentage
- Depth : 6.73 in (17.1 cm)
- Efficiency at full load : 75...154 V adjustable
- Efficiency at full load : 82...144 V
- Efficiency at full load : 94 % full load)
- Emergency Power Off (EPO) : Yes
- Extendable Run Time : 0
- Final Result for Connectable : Connectable with upgrade
- Final Result for Flywheel performance tracking : Connectable products
- For Service Catalog Item : Finished good
- Form name : UPS
- free slots : 1
- Global Keywords : APC DIN Rail - Panel Mount UPS-without battery-500VA 120V
- graph display : 1
- harmonic distortion : Less than 5%
- Heat Dissipation : 90 Btu/h
- Height : 5.83 in (14.8 cm)
- Included Battery Modules : 0
- Input Frequency : 50/60 Hz +/- 3 Hz auto-sensing
- IP Degree of Protection : IP20
- Kw Rating : 325 W
- Lead time : Usually in Stock
- Liquid Electrolyte Value : 0
- Main Input Voltage : 120 V
- Manufacturer : American Power Conversion Corp. (APC)
- Max Configurable Power (Watts) : 325 W
- Maximum configurable power in VA : 500 VA
- Mounting Location : Front
- Mounting Mode : Not rack-mountable
- Mounting Preference : No preference
- Net Weight : 18.03 lb(US) (8.18 kg)
- number of input connectors : 1 Hard Wire 3-wire (1PH+N+G)
- Number of power module filled slots : 0
- Number of power module free slots : 0
- OEM : APC
- Operating Altitude : 0...10000 ft
- Optimized Energy Efficiency : Energy efficient product
- Order method : ERP to ERP
- output connector type : Hard Wire 3-wire (H N + E) 1
- Output frequency : 47...53 Hz for 50 Hz nominal sync to mains
- Output frequency : 57...63 Hz for 60 Hz nominal sync to mains
- Output Voltage : 120 V
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : No
- Pallet layers : 4
- Pallet unit layers : 6
- performance multiplier : 1
- Preventive maintenance : 0
- Prod Type : UPS
- Product Certifications : UL Recognized
- Product Or Component Type : Uninterruptible power supply (UPS)
- Provided Equipment : CD with software
- Provided Equipment : Documentation CD
- Provided Equipment : Installation guide
- Provided Equipment : Smart UPS signalling RS-232 cable
- Rated Power In Va : 500 VA
- RBC Quantity : 1
- redundant : No
- Relative Humidity : 0…95 %
- Removable battery : User replaceable
- Return code : 03 - Return for Qualified Recycle (RQR)
- SCIP Number : B2b22a56-41f2-497e-9ea6-cf093b3b8bd3
- show note OP temperature : No
- Spare Part Order Method direction : Consult local ERP Setup
- Spare used in spare kit : No
- Storage Altitude : 0…50000 ft (0…15240 m)
- Storage Relative Humidity : 0…95 %
- Surge energy rating : 540 J
- Take-back : Yes
- Temperature Ambient Operating Range : 32…104 °F (0…40 °C)
- Temperature Shipping and Storage Range : 5…113 °F (-15…45 °C)
- Topology : Line Interactive
- two post mountable : 0
- Typical recharge time : 2.5 h
- UPS size : WS
- USB compatible : No
- value multiplier : 1
- Warranty : 2 years repair or replace
- Waveform Type : Sine wave
- Width : 14.25 in (36.2 cm)
