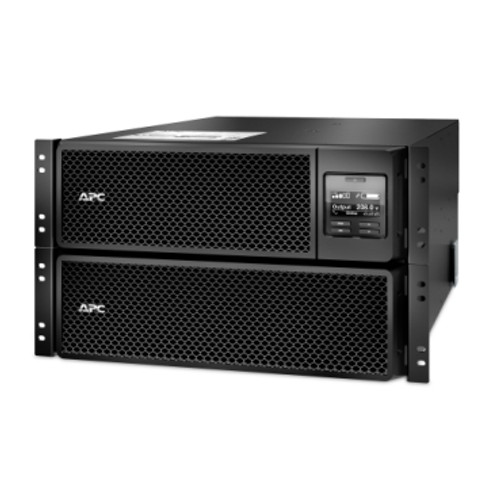

SRT10KRMXLT-5KTF2

acoustic level :

55 dBA~~

additional specification :

High density

Battery Charge Power (Watts) :

1191 W rated

battery curve :

D

battery design life :

2 year(s)

Battery Life :

3…5 year(s)

battery option :

SRT192RMBP2 1 3598 VAh

battery option :

SRT192RMBP2 10 19789 VAh

battery option :

SRT192RMBP2 2 5397 VAh

battery option :

SRT192RMBP2 3 7196 VAh

battery option :

SRT192RMBP2 4 8995 VAh

battery option :

SRT192RMBP2 5 10794 VAh

battery option :

SRT192RMBP2 6 12593 VAh

battery option :

SRT192RMBP2 8 16191 VAh

Battery power in VAH :

1799 VAh runtime

Battery Type :

Lead-Acid battery

Battery Voltage :

+/-192 V (split battery referenced to neutral)

Brand :

APC Brand

bypass type :

Internal Bypass (Automatic and Manual)

California proposition 65 :

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon footprint (kg CO2 eq, Total Life cycle) :

24229

Channel status :

Distribution

Color :

Black

Configurators/Selectors :

Computer rooms

Configurators/Selectors :

NetShelter

Configurators/Selectors :

PowerStruXure Type A

Configurators/Selectors :

UPS Selector

Configurators/Selectors :

UPS Selector Business Power

Configurators/Selectors :

Wiring closets

crest factor :

3 : 1

curve equation :

Efficiency

curve fixed loss :

0.0098

curve load maximum :

100 %

curve load minimum :

1 %

curve proportional loss :

0.0189

curve square loss :

0.0241

curve X-axis maximum :

100 %

curve X-axis minimum :

0 %

curve X-axis title :

Load

curve X-axis units :

Percentage

curve Y-axis maximum :

100 %

curve Y-axis minimum :

50 %

curve Y-axis title :

Efficiency

curve Y-axis units :

Percentage

Depth :

28.15 in (71.5 cm)

Efficiency at full load :

100...275 V adjustable (half load)

Emergency Power Off (EPO) :

Yes

Extendable Run Time :

1

Final Result for Connectable :

Connectable ready

Final Result for Flywheel performance tracking :

Connectable products

Form name :

UPS

free slots :

1

Global Keywords :

APC Smart-UPS SRT 10kVA RM with two 208V to 120V 2U 5kVA Step-Down Transformers

Global Keywords :

Ups

Global warming ; Total life cycle? :

24 229 kg CO2 eq.

graph display :

1

harmonic distortion :

Less than 2%

Heat Dissipation :

2490 Btu/h

Height :

17.36 in (44.1 cm)

Included Battery Modules :

0

Input Frequency :

40 - 70 Hz auto-sensing

IP Degree of Protection :

IP20

Kw Rating :

10000 W

Lead time :

Usually in Stock

Liquid Electrolyte Value :

0

Main Input Voltage :

208 V

Manufacturer :

American Power Conversion Corp. (APC)

Max Configurable Power (Watts) :

10000 W

Maximum configurable power in VA :

10000 VA

Mounting Location :

Front

Mounting Mode :

Rack-mounted

mounting position :

Horizontal

Mounting Preference :

Lower

Net Weight :

436.009 lb(US) (197.77 kg)

number of input connectors :

1 Hard Wire 3-wire (2PH + G)

Number of power module filled slots :

0

Number of power module free slots :

0

number of rack unit :

10U

Number of tare power :

65 W

OEM :

APC

Operating Altitude :

0...10000 ft

Optimized Energy Efficiency :

Energy efficient product

output connection type :

24 NEMA 5-20R

output connection type :

4 NEMA L6-30R

output connector type :

Hard Wire 3-wire (2PH + G) 1

Output frequency :

50/60 Hz +/- 3 Hz sync to mains

Output Voltage :

120 V

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

No

Pre-Installed SmartSlotâ„¢ Cards :

Network management card 3 with environmental monitoring

Prod Type :

UPS

Product Certifications :

ENERGY STAR V2.0 (USA)

Product Certifications :

FCC part 15 class A

Product Certifications :

UL 1778

Product Or Component Type :

Uninterruptible power supply (UPS)

Provided Equipment :

CD with software

Provided Equipment :

Documentation CD

Provided Equipment :

Installation guide

Provided Equipment :

Rack Mounting brackets

Provided Equipment :

Rack mounting hardware

Provided Equipment :

Rack Mounting support rails

Provided Equipment :

Temperature Probe

Provided Equipment :

USB cable

Provided Equipment :

Warranty card

Provided Equipment :

Web/SNMP Management Card

Rated Power In Va :

10000 VA

RBC Quantity :

2

redundant :

No

Relative Humidity :

0…95 % non-condensing

Removable battery :

User replaceable

show note OP temperature :

No

Storage Altitude :

0…50000 ft (0…15240 m)

Storage Relative Humidity :

0…95 % Non-condensing

Surge energy rating :

480 J

Take-back :

Yes

Temperature Ambient Operating Range :

32…104 °F (0…40 °C)

Temperature Shipping and Storage Range :

5…113 °F (-15…45 °C)

Topology :

Double Conversion Online

two post mountable :

0

Typical recharge time :

1.5 h

UNSPSC Classification v19 :

39121011

UNSPSC Classification v23 :

39121011

UPS design life :

7 year(s)

UPS size :

S

USB compatible :

Yes

Warranty :

3 years repair or replace (excluding battery) and 2 years for battery

Waveform Type :

Sine wave

Width :

17.01 in (43.2 cm)

PDF :

https://iportal2.schneider-electric.com/Contents/docs/UPS-JPRO-9QHRU2_R0_EN.PDF
