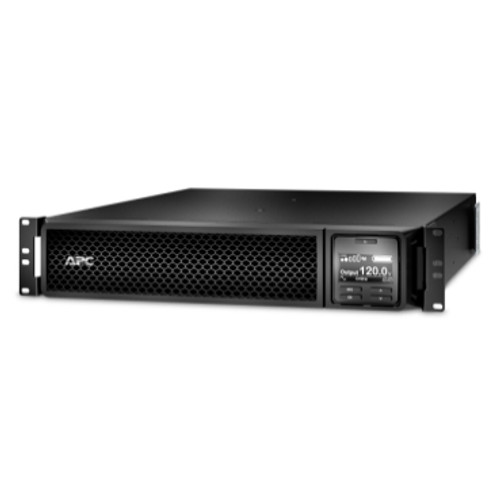

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1500VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6x NEMA 5-15R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
- Lead time : Usually in Stock
- Main Input Voltage : 120 V
- Main Output Voltage : 120 V
- Kw Rating : 1350 W
- Rated power in VA : 1500 VA
- Input Connection Type : NEMA 5-15P
- output connection type : 6 NEMA 5-15R
- Number of rack unit : 2U
- Cable length : 6 ft (1.83 m)
- Number of cables : 1
- Run Time : View Runtime Graph
- Efficiency : View Efficiency Graph
- Battery Type : Lead-Acid battery
- Included Battery Modules : 1
- Battery Slots Empty : 0
- Typical recharge time : 3 h
- RBC Quantity : 1
- Battery Voltage : 48V
- Battery Charge Power (Watts) : 91 W rated
- Battery Life : 3…5 year(s)
- Replacement battery : APCRBC155
- Extendable Run Time : 1
- Topology : Double Conversion Online
- product web sub-family : High density
- Number of power module free slots : 0
- Number of power module filled slots : 0
- Redundant : No
- color : Black
- Height : 3.35 in (8.5 cm)
- Width : 17.01 in (43.2 cm)
- Depth : 20.00 in (50.8 cm)
- Net Weight : 48.50 lb(US) (22 kg)
- Mounting Location : Front
- Mounting preference : No preference
- Mounting Mode : Rack-mounted
- Two post mountable : 0
- USB compatible : Yes
- Mounting position : Horizontal
- Input Frequency : 40 - 70 Hz auto-sensing
- Efficiency at full load : 108...150 V
50...150 V 40% load
- Maximum configurable power in VA : 1500 VA
- Max Configurable Power (Watts) : 1350 W
- Output Frequency (sync to mains) : 50/60 Hz +/- 3 Hz sync to mains
- Wave type : Sine wave
- Harmonic distortion : Less than 2%
- Crest factor : 3 : 1
- Bypass type : Built-in Bypass
- Product Certifications : ENERGY STAR V2.0 (USA)
- Ambient Air Temperature for Operation : 32…104 °F (0…40 °C)
- Relative Humidity : 0…95 % non-condensing
- Operating altitude : 0...10000 ft
- Ambient Air Temperature for Storage : -4…122 °F (-20…50 °C)
- Storage Relative Humidity : 0…95 % non-condensing
- Storage altitude : 0…50000 ft (0.00…15240.00 m)
- Acoustic level : 50 dBA
- heat dissipation : 463 Btu/h
- IP degree of protection : IP20
- Free slots : 0
- Pre-Installed SmartSlot™ Cards : Network management card 3 with environmental monitoring
- Emergency Power Off (EPO) : Yes
- Surge energy rating : 432 J
- GTIN : 731304330080
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 9.69 in (24.6 cm)
- Package 1 Width : 29.49 in (74.9 cm)
- Package 1 Length : 23.39 in (59.4 cm)
- Package 1 Weight : 65.26 lb(US) (29.6 kg)
