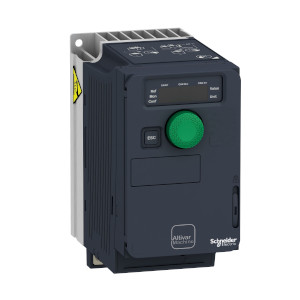

ATV320 Variable speed drive, 0.55 kW, 200…240 V, 1 phase, compact
- Brand : Schneider Electric
- By Schneider : Yes
- capacity of DC link : 1120 µF
- Carbon footprint (kg CO2 eq, Total Life cycle) : 1243
- Communication Port Protocol : CANopen
- Communication Port Protocol : Modbus serial
- computer port : Yes
- Depth : 5.4 in (138.0 mm)
- design of frequency changer : U converter
- Discrete Input Logic : Negative logic (sink)
- Discrete Input Logic : Positive logic (source)
- Discrete Input Number : 7
- Discrete Input Type : DI1...DI6 logic inputs, 24 V DC 30 V)
- Discrete Input Type : DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
- Discrete Input Type : STO safe torque off, 24 V DC1.5 kOhm
- Discrete Output Number : 3
- Discrete Output Type : Open collector DQ- 0-1 kHz 30 V DC 100 mA
- Discrete Output Type : Open collector DQ+ 0-1 kHz 30 V DC 100 mA
- Electromagnetic Compatibility : 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5
- Electromagnetic Compatibility : Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
- Electromagnetic Compatibility : Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4
- Electromagnetic Compatibility : Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
- Electromagnetic Compatibility : Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
- Electromagnetic Compatibility : Voltage dips and interruptions immunity test conforming to IEC 61000-4-11
- EMC filter : Class C2 EMC filter integrated
- EMC limit value (complied) : Yes
- encoder protocol : RS 422
- environmental class (during operation) : Class 3C3 according to IEC 60721-3-3
- environmental class (during operation) : Class 3S2 according to IEC 60721-3-3
- environmental class (during storage) : Class 1C3 according to EN 60721-3
- environmental class (during storage) : Class 1S2 according to EN 60721-3
- environmental class (during transport) : Class 2C3 according to EN 60721-3
- environmental class (during transport) : Class 2S1 according to EN 60721-3
- Final Result for Connectable : Connectable ready
- Final Result for Flywheel performance tracking : Connectable products
- format of the drive : Compact
- Global Keywords : Advanced machines
- Global Keywords : Altivar Machine ATV320
- Global Keywords : Analog input
- Global Keywords : Analog output
- Global Keywords : Asynchronous motors
- Global Keywords : Atv320
- Global Keywords : CANopen
- Global Keywords : Compact control block
- Global Keywords : Digital input
- Global Keywords : Digital output
- Global Keywords : GDL
- Global Keywords : IE2 motor
- Global Keywords : IE3 motor
- Global Keywords : Inverter
- Global Keywords : LED 7-segment display
- Global Keywords : Logic input
- Global Keywords : Logic output
- Global Keywords : Modbus
- Global Keywords : Modbus SL
- Global Keywords : Motor monitoring functions
- Global Keywords : Motor protection functions
- Global Keywords : Multi-application
- Global Keywords : PM motor
- Global Keywords : Programmable
- Global Keywords : Safety functions
- Global Keywords : Schneider electric
- Global Keywords : Single phase
- Global Keywords : SLS
- Global Keywords : Small power motors
- Global Keywords : SMS
- Global Keywords : SS1
- Global Keywords : STO
- Global Keywords : Synchronous motors
- Global Keywords : U/f control
- Global Keywords : Variable speed drive
- Global Keywords : Vector control
- Global Keywords : Vfd
- Global Keywords : Vsd
- Global warming ; Total life cycle? : 1 243 kg CO2 eq.
- Height : 5.6 in (143.0 mm)
- housing material : Plastic
- IP Degree of Protection : IP20
- line current : 6.6 A 240 V heavy duty)
- line current : 7.8 A 200 V heavy duty)
- linearity error : AI1, AI2, AI3 +/- 0.2...0.5 % of maximum value analog input
- linearity error : AQ1 +/- 0.3 % analog output
- Manufacturer : Schneider Electric
- Marking : ATEX
- Marking : CE
- Marking : CSA
- Mounting Mode : Wall mount
- NEMA Protection Rating : NEMA 1
- Net Weight : 2.4 lb(US) (1.1 kg)
- Network Frequency : 50-60 Hz
- nominal output current : 3.7 A
- Nominal Output Power : 0.55 kW
- nominal switching frequency : 4 kHz
- number of HW interfaces industrial Ethernet : 0
- number of HW interfaces other : 1.0
- number of HW interfaces parallel : 0
- number of HW interfaces PROFINET : 0
- number of HW interfaces serial RS232 : 0
- number of HW interfaces serial RS422 : 0
- number of HW interfaces serial RS485 : 1.0
- number of HW interfaces serial TTY : 0
- number of HW interfaces USB : 0
- number of input phases : 1
- number of inputs, bidirectional, not potential-fre : 0
- number of inputs, potential-free : 0
- number of output phases : 1
- Number of Units in Package 2 : 45
- operating element present : Yes
- operating position : Vertical +/- 10 degree
- optical interface present : No
- option card : communication module, CANopen
- option card : communication module, DeviceNet
- option card : communication module, EtherCAT
- option card : communication module, Ethernet Powerlink
- option card : communication module, EtherNet/IP
- option card : communication module, Profibus DP V1
- option card : communication module, Profinet
- Overvoltage Category : III
- Package 2 GTIN : 73606480966537
- Package 2 Height : 29.53 in (75.000 cm)
- Package 2 Length : 31.50 in (80.000 cm)
- Package 2 Weight : 160.706 lb(US) (72.895 kg)
- Package 2 width : 23.62 in (60.000 cm)
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : Yes
- permitted relative humidity (during operation) : Class 3K5 according to EN 60721-3
- permitted relative humidity (during storage) : Class 1K5 according to EN 60721-3
- permitted relative humidity (during transport) : Class 2K5 according to EN 60721-3
- Phase : Single phase
- Pollution Degree : 2
- power dissipation in W : Self-cooled 33.0 W 200 V 4 kHz
- power loss per device current dependent : 33.0 W
- power loss static current independent : 33.0 W
- Product Certifications : ATEX
- Product Certifications : CE
- Product Certifications : EAC
- Product Certifications : GOST
- Product Certifications : KC
- Product Certifications : NOM
- Product Certifications : RCM
- Product contributes to saved and avoided emissions : Yes
- Product Or Component Type : Variable speed drive
- Product Specific Application : Complex machines
- prospective line Isc : 1 kA
- Protection Type : Input phase breaks drive
- Protection Type : Overcurrent between output phases and earth drive
- Protection Type : Overheating protection drive
- Protection Type : Short-circuit between motor phases drive
- Protection Type : Thermal protection drive
- refresh time : Logic input DI1...DI4)8 ms
- refresh time : Relay output R1A, R1B, R1C)2 ms
- refresh time : Relay output R2A, R2C)2 ms
- Regulation Loop : Adjustable PID regulator
- relative symmetric mains voltage tolerance : 10 %
- relative symmetric network frequency tolerance : 5 %
- relay output type : Configurable relay logic R1A 1 NO 100000 cycles
- relay output type : Configurable relay logic R1B 1 NC 100000 cycles
- relay output type : Configurable relay logic R1C
- relay output type : Configurable relay logic R2A 1 NO 100000 cycles
- relay output type : Configurable relay logic R2C
- sampling duration : 2 ms AI1, AI2, AI3) - analog input
- sampling duration : 2 ms AQ1) - analog output
- SCIP Number : Ee3fa745-edfd-40de-8348-1343b8a1770b
- speed accuracy : +/- 10 % of nominal slip 0.2 Tn to Tn
- Standards : IEC 61800-5-1
- supporting protocol for ASI : No
- supporting protocol for AS-Interface Safety at Wor : No
- supporting protocol for BACnet : No
- supporting protocol for CAN : Yes
- supporting protocol for Data-Highway : No
- supporting protocol for DeviceNet : Yes
- supporting protocol for DeviceNet Safety : No
- supporting protocol for EtherNet/IP : Yes
- supporting protocol for Foundation Fieldbus : No
- supporting protocol for INTERBUS : No
- supporting protocol for INTERBUS-Safety : No
- supporting protocol for KNX : No
- supporting protocol for LON : No
- supporting protocol for MODBUS : Yes
- supporting protocol for other bus systems : Yes
- supporting protocol for PROFIBUS : Yes
- supporting protocol for PROFINET CBA : No
- supporting protocol for PROFINET IO : Yes
- supporting protocol for PROFIsafe : No
- supporting protocol for SafetyBUS P : No
- with safety function Safe Direction (SDI) : No
- with safety function Safe Operating Stop (SOS) : No
- with safety function Safe Position (SP) : No
- with safety function Safe programmable logic : No
- with safety function Safe Speed Monitor (SSM) : No
- with safety function Safe Stop 1 (SS1) : Yes
- with safety function Safe torque off (STO) : Yes
- with safety function Safely Limited Position (SLP) : No
- with safety function Safely Limited Speed (SLS) : Yes
- with sft fct Safe Stop 2 (SS2) : No
