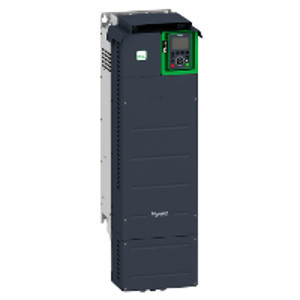

ATV630D37M3

Brand :

Schneider Electric

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

capacity of DC link :

11200.0 µF

Carbon footprint (kg CO2 eq, Total Life cycle) :

48592

Communication Port Protocol :

Ethernet

Communication Port Protocol :

Modbus serial

Communication Port Protocol :

Modbus TCP

computer port :

Yes

Connector Type :

RJ45 on the remote graphic terminal)Ethernet/Modbus TCP

Connector Type :

RJ45 on the remote graphic terminal)Modbus serial

continuous output current :

123 A 2.5 kHz heavy duty

continuous output current :

149 A 2.5 kHz normal duty

data format :

8 bits, configurable odd, even or no parity

degree of protection :

UL type 1 UL 508C

Depth :

12.7 in (323 mm)

design of frequency changer :

U converter

Device Short Name :

ATV630

discrete and process manufacturing :

Building - HVAC Compressor centrifugal

discrete and process manufacturing :

Building - HVAC Screw compressor

discrete and process manufacturing :

Food and beverage processing Atomization

discrete and process manufacturing :

Food and beverage processing Fan

discrete and process manufacturing :

Food and beverage processing Other application

discrete and process manufacturing :

Food and beverage processing Pump

Global Keywords :

Ip21 speed drive

Global Keywords :

Low voltage speed drive

Global Keywords :

Normal duty

Global Keywords :

Schneider

Global Keywords :

Schneider electric

Global Keywords :

Se

Global Keywords :

Speed drive

Global Keywords :

UL type 1

Global Keywords :

Variable frequency drive

Global Keywords :

Variable speed drive

Global Keywords :

Vsd for asynchronous motor

Global Keywords :

Vsd for synchronous motor

Global warming ; Total life cycle? :

48 592 kg CO2 eq.

Height :

36.3 in (922 mm)

housing material :

Sheet steel

input compatibility :

DI1...DI6 discrete input level 1 PLC IEC 61131-2

input compatibility :

DI5, DI6 discrete input level 1 PLC IEC 65A-68

input compatibility :

STOA, STOB discrete input level 1 PLC IEC 61131-2

insulation resistance :

> 1 MOhm 500 V DC for 1 minute to earth

IP Degree of Protection :

IP21

IP Degree of Protection :

IP21IEC 60529

IP Degree of Protection :

IP21IEC 61800-5-1

isolation :

Between power and control terminals

line current :

104.7 A 200 V heavy duty)

line current :

107.8 A 240 V normal duty)

line current :

128 A 200 V normal duty)

line current :

88.6 A 240 V heavy duty)

Maximum Input Current per phase :

128.0 A

maximum output frequency :

500 kHz

maximum output voltage :

240.0 V

Maximum Switching Current :

Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC

Maximum Switching Current :

Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC

option card :

communication module, Ethernet Powerlink

option card :

Communication module, BACnet MS/TP

option card :

Slot A communication module, CANopen daisy chain RJ45

option card :

Slot A communication module, CANopen screw terminals

option card :

Slot A communication module, Profibus DP V1

option card :

Slot A communication module, Profinet

option card :

Slot A/slot B digital and analog I/O extension module

option card :

Slot A/slot B output relay extension module

Overvoltage Category :

III

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

No

permissible temporary current boost :

1.1 x In 60 s normal duty)

permissible temporary current boost :

1.5 x In 60 s heavy duty)

permitted relative humidity (during operation) :

Class 3K5 according to EN 60721-3

permitted relative humidity (during storage) :

Class 1K5 according to EN 60721-3

permitted relative humidity (during transport) :

Class 2K5 according to EN 60721-3

Phase :

3 phase

Physical Interface :

2-wire RS 485

Physical Interface :

Ethernet

Pollution Degree :

2

Pollution Degree :

2 IEC 61800-5-1

power dissipation in W :

Forced convection 1141 W 200 V 2.5 kHz

power dissipation in W :

Natural convection 156 W 200 V 2.5 kHz

power loss per device current dependent :

1596.0 W

power loss static current independent :

33.0 W

power range :

30-50 kW 200-240 V 3 phase

Product Certifications :

ATEX INERIS

Product Certifications :

ATEX zone 2/22

Product Certifications :

CSA

Product Certifications :

DNV-GL

Product Certifications :

TÃœV

Product Certifications :

UL

Product contributes to saved and avoided emissions :

Yes

Product Destination :

Asynchronous motors

Product Destination :

Synchronous motors

Product Or Component Type :

Variable speed drive

Product Specific Application :

Process and utilities

prospective line Isc :

50 kA

Protection Type :

Break on the control circuit drive

Protection Type :

Line supply overvoltage drive

Protection Type :

Line supply phase loss drive

Protection Type :

Line supply undervoltage drive

Protection Type :

Motor phase break drive

Protection Type :

Motor phase break motor

Protection Type :

Overcurrent between output phases and earth drive

Protection Type :

Overheating drive

Protection Type :

Overload of output voltage drive

Protection Type :

Overspeed drive

Protection Type :

Overvoltages on the DC bus drive

Protection Type :

Safe torque off drive

Protection Type :

Safe torque off motor

Protection Type :

Short-circuit protection drive

Protection Type :

Thermal protection drive

Protection Type :

Thermal protection motor

Quantity Per Set :

1

refresh time :

Relay output R1, R2, R3)5 ms +/- 0.5 ms)

Regulation Loop :

Adjustable PID regulator

Relative Humidity :

5-95 % without condensation IEC 60068-2-3

relative symmetric mains voltage tolerance :

10 %

relative symmetric network frequency tolerance :

5 %

relay output number :

3

relay output type :

Configurable relay logic R1 fault relay NO/NC 100000 cycles

relay output type :

Configurable relay logic R2 sequence relay NO 100000 cycles

relay output type :

Configurable relay logic R3 sequence relay NO 100000 cycles

Safety Function :

STO (safe torque off) SIL 3

sampling duration :

10 ms +/- 1 ms AO1) - analog output

sampling duration :

2 ms +/- 0.5 ms DI1...DI4) - discrete input

sampling duration :

5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input

sampling duration :

5 ms +/- 1 ms DI5, DI6) - discrete input

SCIP Number :

B8d5fdde-166b-4332-b5d0-afde1be95439

shock resistance :

15 gn 11 ms IEC 60068-2-27

specific application :

Utility

speed drive output frequency :

0.1-500 Hz

Standards :

IEC 13849-1

Standards :

IEC 60721-3

Standards :

IEC 61000-3-12

Standards :

IEC 61508

Standards :

UL 508C

Standards :

EN/IEC 61800-3 environment 2 category C3

Standards :

Environment 1 category C2 IEC 61800-3

Standards :

Environment 2 category C3 IEC 61800-3

Standards :

IEC 61800-3

Standards :

IEC 61800-3 environment 1 category C2

Standards :

IEC 61800-5-1

Supply :

External supply for digital inputs 24 V DC 19-30 V)

Supply :

Internal supply for digital inputs and STO 24 V DC 21-27 V)

Supply :

Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %

Supply Frequency :

50...60 Hz - 5...5 %

supporting protocol for ASI :

No

supporting protocol for AS-Interface Safety at Wor :

No

supporting protocol for BACnet :

No

supporting protocol for CAN :

Yes

supporting protocol for Data-Highway :

No

supporting protocol for DeviceNet :

No

supporting protocol for DeviceNet Safety :

No

supporting protocol for EtherNet/IP :

Yes

supporting protocol for Foundation Fieldbus :

No

supporting protocol for INTERBUS :

No

supporting protocol for INTERBUS-Safety :

No

supporting protocol for KNX :

No

supporting protocol for LON :

No

supporting protocol for MODBUS :

Yes

supporting protocol for other bus systems :

No

supporting protocol for PROFIBUS :

Yes

supporting protocol for PROFINET CBA :

Yes

supporting protocol for PROFINET IO :

Yes

supporting protocol for PROFIsafe :

No

supporting protocol for SafetyBUS P :

No

supporting protocol for SERCOS :

No

supporting protocol for SUCONET :

No

supporting protocol for TCP/IP :

Yes

Switching Frequency :

2...8 kHz adjustable

Switching Frequency :

2.5...8 kHz with derating factor

synchronous motor control profile :

Permanent magnet motor

synchronous motor control profile :

Synchronous reluctance motor

Take-back :

No

Temperature Ambient Operating Range :

5-140 °F (-15-60 °C)

Temperature Shipping and Storage Range :

-40-158 °F (-40-70 °C)

transmission frame :

RTU

Transmission Rate :

10, 100 Mbits

Transmission Rate :

4800 bps, 9600 bps, 19200 bps, 38.4 Kbps

type of cooling :

Forced convection

type of polarization :

No impedance

UNSPSC Classification v19 :

39122001

UNSPSC Classification v23 :

39122001

variant :

Standard version

vibration resistance :

1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6

vibration resistance :

1.5 mm peak to peak (f= 2-13 Hz) conforming to IEC 60068-2-6

volume of cooling air :

77932.2 Gal/hr(US) (295 m3/h)

Width :

11.4 in (290 mm)

with safety function Safe brake management (SBC/SB :

No

with safety function Safe Direction (SDI) :

No

with safety function Safe Operating Stop (SOS) :

No

with safety function Safe Position (SP) :

No

with safety function Safe programmable logic :

No

with safety function Safe Speed Monitor (SSM) :

No

with safety function Safe Stop 1 (SS1) :

No

with safety function Safe torque off (STO) :

Yes

with safety function Safely Limited Position (SLP) :

No

with safety function Safely Limited Speed (SLS) :

No

with sft fct Safe Stop 2 (SS2) :

No

PDF :

https://iportal2.schneider-electric.com/Contents/docs/SQD-630%20CATALOG.PDF
