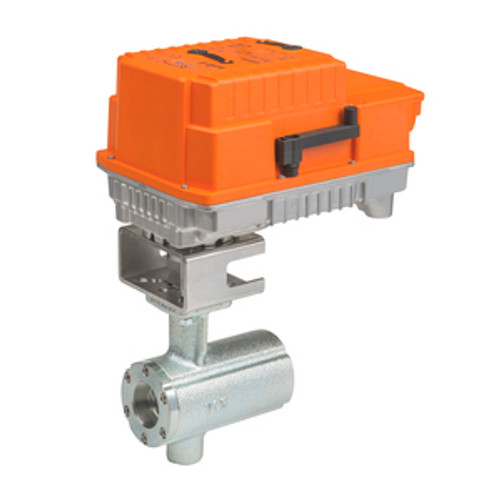

Ball Valve (VB), 1", 2-way, ANSI Class 300, Cv 24 ConfigurableValve Actuator, Electrical fail-safe, AC 24...240 V / DC 24...125 V, 2...10 V, 2x SPDT, terminals, BACnet MS/TPModbus RTUMP-Bus, MFT/programmableActuator fitted
- ANSI Class : 300
- Pattern : 2-way
- Cv : 24
- Body Pressure Rating : ANSI Class 300
- Flow characteristic {Tools} : Equal percentage
- End Fitting : Internal thread
- Trim : Stainless steel
- Valve Size : 1" [25]
- Voltage AC/DC : AC 24...240 V / DC 24...125 V
- Power Consumption (Running) : 52 W
- Power Consumption (Holding) : 9 W
- Power Consumption For Wire Sizing : with 24 V 54 VA / with 240 V 68 VA
- Auxiliary Switches : 2x SPDT
- Control Type : MFT/Programmable
- Protection category : IP66/67
- Degree Of Protection NEMA : NEMA 4X
- Enclosure Type : UL Enclosure Type 4X
