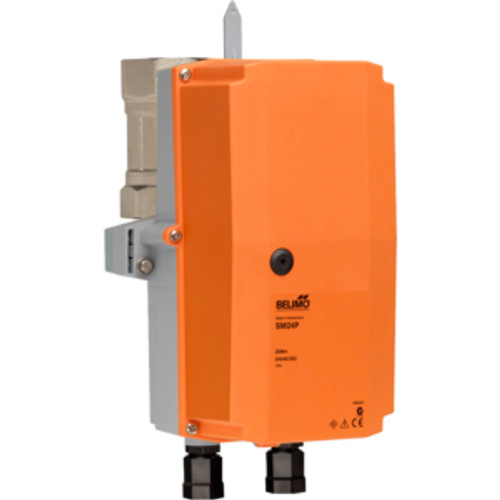

Characterized Control Valve (CCV), 3/4", 2-way, Cv 4.7 ConfigurableValve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, NEMA 4X, terminalsActuator fitted
- Pattern : 2-way
- Cv : 4.7
- Body Pressure Rating : 600 psi
- Flow characteristic {Tools} : Equal percentage
- End Fitting : Internal thread
- Trim : Stainless steel
- Valve Size : 0.75" [20]
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 3.5 W
- Power Consumption (Holding) : 1.3 W
- Power Consumption For Wire Sizing : 6 VA
- Control Type : MFT/Programmable
- Protection category : IP66/67
- Degree Of Protection NEMA : NEMA 4X
- Enclosure Type : UL Enclosure Type 4X
