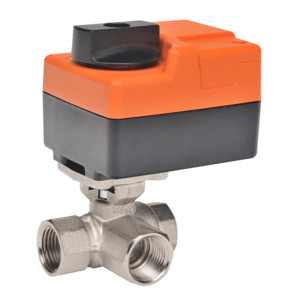

Characterized Control Valve (CCV), 1/2", 3-way, Cv 1.9 Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, terminals, ModulatingActuator fitted
- Pattern : 3-way
- Cv : 1.9
- Body Pressure Rating : 600 psi
- Flow characteristic {Tools} : A – AB: equal percentage; B – AB: linear
- End Fitting : Internal thread
- Trim : Chrome plated brass
- Valve Size : 0.5" [15]
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 0.5 W
- Power Consumption For Wire Sizing : 1 VA
- Control Type : DC 2...10 V
- Protection category : IP40
- Degree Of Protection NEMA : NEMA 1
- Enclosure Type : UL Enclosure Type 1
