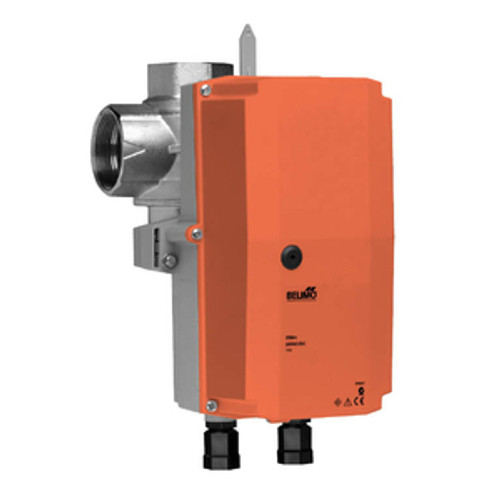

Characterized Control Valve (CCV), 1 1/4", 3-way, Cv 10 ConfigurableValve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, NEMA 4X, terminalsActuator fitted
- Pattern : 3-way
- Cv : 10
- Body Pressure Rating : 400 psi
- Flow characteristic {Tools} : Equal percentage
- End Fitting : Internal thread
- Trim : Stainless steel
- Valve Size : 1.25" [32]
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 2.5 W
- Power Consumption (Holding) : 0.4 W
- Power Consumption For Wire Sizing : 5 VA
- Control Type : DC 2...10 V
- Protection category : IP66/67
- Degree Of Protection NEMA : NEMA 4X
- Enclosure Type : UL Enclosure Type 4X
