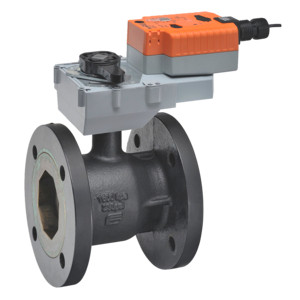

Characterized Control Valve (CCV), 5", 2-way, ANSI Class 125, Cv 290 ConfigurableValve Actuator, Electrical fail-safe, AC/DC 24 V, 2...10 V, MFT/programmableActuator fitted
- ANSI Class : 125
- Pattern : 2-way
- Cv : 290
- Body Pressure Rating : ANSI Class 125, standard class B
- Flow characteristic {Tools} : Equal percentage
- End Fitting : Flange
- Trim : Stainless steel
- Valve Size : 5" [125]
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 12 W
- Power Consumption (Holding) : 3 W
- Power Consumption For Wire Sizing : 21 VA
- Control Type : MFT/Programmable
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
