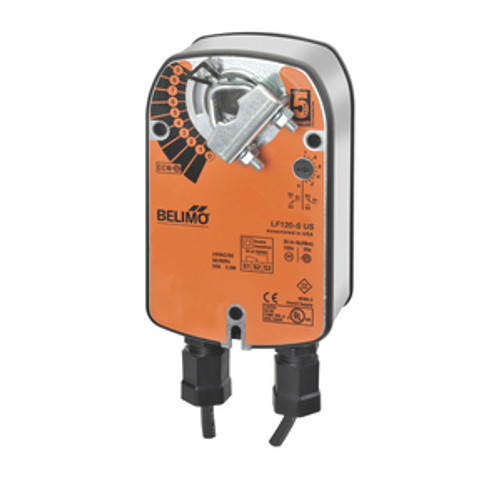

Damper Actuator, 35 in-lb [4 Nm], Spring return, AC 120 V, On/Off, 1 x SPDT
- Voltage AC/DC : AC\xa0120\xa0V
- Power Consumption (Running) : 5.5 W
- Power Consumption (Holding) : 3.5 W
- Power Consumption For Wire Sizing : 7.5 VA
- Auxiliary Switches : 1x SPDT
- Torque : 35\xa0in-lb [4\xa0Nm]
- Control Type : On/Off
- Direction Of Motion Motor : selectable with switch 0/1
- Direction of Rotation (Fail-Safe) : Reversible with cw/ccw mounting
- Angle of Rotation : 95
- Running Time (Motor) : 75\xa0s / 90°
- Running Time (Fail-safe) : <25\xa0s
- Protection category : IP54
- Degree Of Protection NEMA : NEMA\xa02
- Enclosure Type : UL\xa0Enclosure\xa0Type\xa02
- Ambient Temperature : -22...122°F [-30...50°C]
