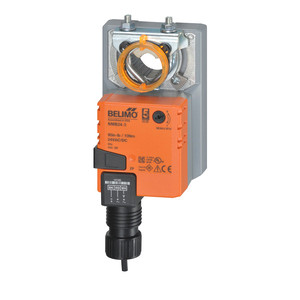

Damper Actuator, 90 in-lb [10 Nm], Non fail-safe, AC/DC 24 V, On/Off, Floating point
- Voltage AC/DC : AC/DC\xa024\xa0V
- Power Consumption (Running) : 2 W
- Power Consumption (Holding) : 0.2 W
- Power Consumption For Wire Sizing : 4 VA
- Torque : 90\xa0in-lb [10\xa0Nm]
- Control Type : Floating/3-point
- Direction Of Motion Motor : selectable with switch 0/1
- Manual Override : External push button
- Angle of Rotation : 95
- Running Time (Motor) : 95\xa0s / 90°
- Protection category : IP54
- Degree Of Protection NEMA : NEMA\xa02
- Enclosure Type : UL\xa0Enclosure\xa0Type\xa02
- Ambient Temperature : -22...122°F [-30...50°C]
