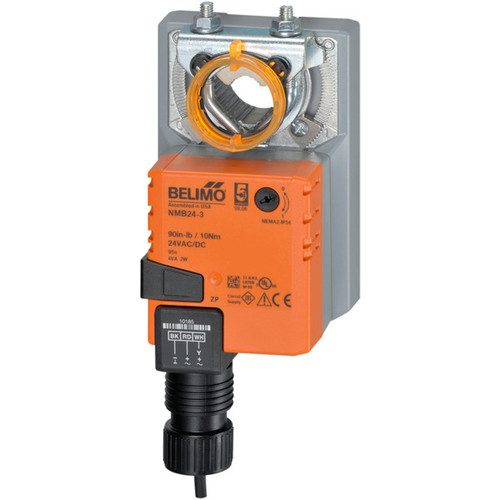

Damper Actuator, 90 in-lb [10 Nm], Non fail-safe, AC/DC 24 V, modulating, 2...10 V
- Voltage AC/DC : AC/DC\xa024\xa0V
- Power Consumption (Running) : 2.5 W
- Power Consumption (Holding) : 0.4 W
- Power Consumption For Wire Sizing : 5 VA
- Torque : 90\xa0in-lb [10\xa0Nm]
- Control Type : DC\xa02...10\xa0V
- Direction Of Motion Motor : selectable with switch 0/1
- Manual Override : External push button
- Angle of Rotation : 95
- Running Time (Motor) : 45\xa0s / 90°
- Protection category : IP54
- Degree Of Protection NEMA : NEMA\xa02
- Enclosure Type : UL\xa0Enclosure\xa0Type\xa02
- Ambient Temperature : -22...122°F [-30...50°C]
