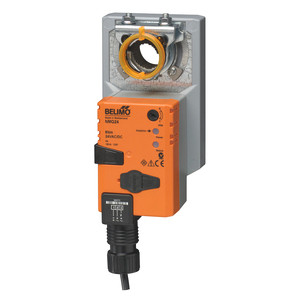

Damper Actuator, 70 in-lb [8 Nm], Non fail-safe, AC/DC 24 V, MFT/programmable, 2...10 V
- Voltage AC/DC : AC/DC\xa024\xa0V
- Power Consumption (Running) : 13 W
- Power Consumption (Holding) : 1.5 W
- Power Consumption For Wire Sizing : 23 VA
- Torque : 70\xa0in-lb [8\xa0Nm]
- Control Type : MFT/Programmable
- Direction Of Motion Motor : selectable with switch 0/1
- Manual Override : External push button
- Angle of Rotation : 95
- Running Time (Motor) : 4\xa0s / 90°
- Running Time range (Motor) : 4...20\xa0s
- Protection category : IP54
- Degree Of Protection NEMA : NEMA\xa02
- Enclosure Type : UL\xa0Enclosure\xa0Type\xa02
- Ambient Temperature : -22...122°F [-30...50°C]
