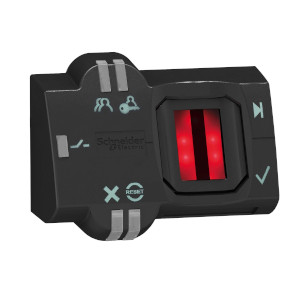

Biometric switch monostable, plastic, Dia 22, connection by M12 connector, 24 V AC/DC
- [Ures] residual voltage : 1 V closed state~~
- [Us] rated supply voltage : 24 V
- [Us] rated supply voltage : 24 V DC
- bezel material : Dark grey plastic
- Brand : Schneider Electric
- By Schneider : Yes
- cable insulation material : PvR
- Carbon footprint (kg CO2 eq, Total Life cycle) : 60
- customizable : 0
- customizable : No
- Device Short Name : XB5S
- Electrical Connection : M12 connector 0.7 ft (0.2 m)
- Enclosure Material : Polyamide PA66
- Final Result for Flywheel performance tracking : Non Flywheel
- function of module : Monostable
- Global Keywords : Biometric switch
- Global Keywords : Dust resistant
- Global Keywords : Fingerprint scanner
- Global Keywords : Horizontal mounting
- Global Keywords : LED indicators
- Global Keywords : M12 Connector
- Global Keywords : Monostable
- Global Keywords : Schneider electric
- Global Keywords : Stand-alone
- Global Keywords : Vertical mounting
- Global Keywords : Water Resistant
- Global warming ; Total life cycle? : 60 kg CO2 eq.
- IP Degree of Protection : IP20 IEC 60529 rear face)
- IP Degree of Protection : IP65 IEC 60529 front face)
- Local Signalling : 1 LED (green) for output state indicator
- Local Signalling : 1 LED (orange) for administrator's registration mode
- Local Signalling : 1 LED (orange) for operator's registration mode
- Local Signalling : 1 LED (red) for error
- Local Signalling : 1 LED (red) for reset
- Manufacturer : Schneider Electric
- Marking : CE
- maximum delay first up : 3 s + 0.5 ms per user registered
- maximum delay recovery : 1.5 s
- maximum delay response : 1.5 s
- Maximum Switching Current : 200 mA
- memory usage : 200 users with up to 2 fingerprints per user
- mounting diameter : 0.9 in (22 mm)
- NEMA degree of protection : NEMA 12
- Net Weight : 0.403 lb(US) (0.183 kg)
- Number of Units in Package 2 : 8
- operating position : Flat surface installation
- operating position : Horizontal position
- operating position : Vertical surface installation
- operator profile : fingerprint reader
- Output Type : PNP
- Package 2 GTIN : 43606480061422
- Package 2 Height : 5.91 in (15.0 cm)
- Package 2 Length : 15.75 in (40.0 cm)
- Package 2 Weight : 3.602 lb(US) (1.634 kg)
- Package 2 width : 11.81 in (30.0 cm)
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : No
- Product Certifications : CSA
- Product Certifications : UL
- Product Or Component Type : Biometric switch
- Product Specific Application : Industrial machines
- Product Specific Application : Materials handling
- Protection Type : overload protection
- Protection Type : Reverse polarity
- Protection Type : Short-circuit
- sale per indivisible quantity : 1
- shock resistance : 50 gn 11 ms IEC 60068-2-27
- short-circuit protection : 250 mA external fuse gG
- Standards : IEC 61000-6-2
- Standards : IEC 61000-6-4
- supply voltage limits : 20…30 V DC
- Take-back : No
- Temperature Ambient Operating Range : 23…122 °F (-5…50 °C)
- Temperature Shipping and Storage Range : -13…158 °F (-25…70 °C)
- Type Of Operator : Momentary
- Unit Type of Package 2 : S02
- UNSPSC Classification v19 : 39121801
- UNSPSC Classification v23 : 39121801
- vibration resistance : +/- 3 mm (f= 5…9 Hz) conforming to IEC 60068-2-6
- vibration resistance : 1 gn (f= 9…500 Hz) conforming to IEC 60068-2-6
- Volume of Package 2 : 18000.0 cm3
- Warranty : 18 months
