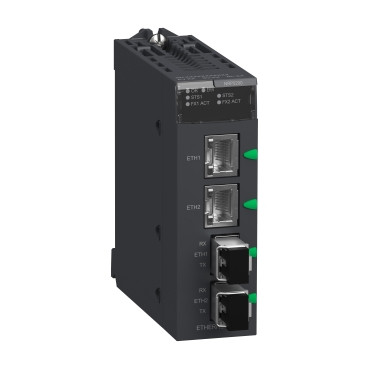

This fiber converter is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). It supports multimode and hot swap function. It is a fibre optic repeater with a current of 200mA and a rated voltage of 24V. It offers 1310nm wavelength. This product is robust, high quality and based on the latest innovative technology. The optic repeater has 2 RJ45 with 100BASE-TX port, 2 fibre optic with 100BASE-FX port Ethernet ports with 0m to 2000m operating distance. It is an IP20 rated product. Its dimensions are 32mm (width) x 86mm (depth) x 100mm (height) and weighs 203g. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, GOST, C-Tick. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with the entire range of Modicon controllers. The repeater is linked to CRA drop adapters by means of Ethernet Interlink cables. Modicon X80 is a common platform of modules that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC).
- Range of Product : Modicon X80
- Product or Component Type : Fibre optic repeater
- Optic fiber type : Multi mode
- Rated voltage : 24 V
- Current consumption : 140 mA typical, 200 mA maximum
- Function Available : Hot swap
- Number of port : 2 RJ45 100BASE-TX IEEE 802.3u, 2 fiber optic 100BASE-FX IEEE 802.3u
- Wavelength : 0.000051575 in (1310 nm)
- Operating Distance : 0...2000 m
- Attenuation : -23.5…-14 dB 50/125 µm), -20…-14 dB 62.5/125 µm)
- Rise/fall time : 3 ns
- Receiver Sensitivity : - 31...- 14 dBm
- Marking : CE
- Width : 1.26 in (32 mm)
- Height : 3.94 in (100 mm)
- Depth : 3.39 in (86 mm)
- Net Weight : 7.16 oz (203 g)
- Ambient Air Temperature for Operation : 32…140 °F (0…60 °C)
- Ambient Air Temperature for Storage : -40…158 °F (-40…70 °C)
- Relative humidity : 0…95 %
- Product certifications : CE, RCM, CSA, EAC, Merchant Navy, UL
- Dielectric strength : 1400 V DC between field and bus, 500 V DC between channels
- IP Degree of Protection : IP20
- Operating altitude : 0...13123.36 ft (0...4000 m)
- Category : US1PC3418160
- Discount Schedule : PC34
- GTIN : 3595864142753
- Returnability : Yes
- Country of origin : FR
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 2.28 in (5.800 cm)
- Package 1 Width : 4.41 in (11.200 cm)
- Package 1 Length : 5.12 in (13.000 cm)
- Package 1 Weight : 8.78 oz (249.000 g)
- Unit Type of Package 2 : S02
- Number of Units in Package 2 : 14
- Package 2 Height : 5.91 in (15.000 cm)
- Package 2 Width : 11.81 in (30.000 cm)
- Package 2 Length : 15.75 in (40.000 cm)
- Package 2 Weight : 8.35 lb(US) (3.789 kg)
- Warranty : 18 months
