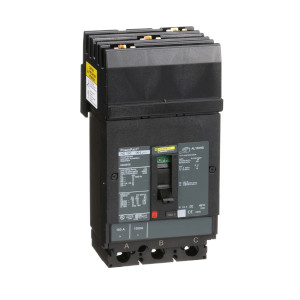

Circuit breaker, PowerPact H, I Line, thermal magnetic, 100A, 3 pole, 600V, 14kA, phase ABC
- [Ics] rated service breaking capacity : 14 kA 500/525 V AC 50/60 Hz IEC 60947-2~~
- [Ics] rated service breaking capacity : 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2
- [Ics] rated service breaking capacity : 20 kA 250 V DC IEC 60947-2
- [Ics] rated service breaking capacity : 20 kA 500 V DC IEC 60947-2
- [Ics] rated service breaking capacity : 25 kA 220/240 V AC 50/60 Hz IEC 60947-2
- [Ue] rated operational voltage : 690 V AC 50/60 Hz IEC 60947-3
- [Ui] rated insulation voltage : 750 V IEC 60947-2
- [Uimp] rated impulse withstand voltage : 8 kV IEC 60947-2
- Application : Distribution
- AWG Gauge : AWG 14...AWG 3/0 aluminium/copper terminal
- Brand : Square D
- breaking capacity : 14 kA 600 V AC 50/60 Hz
- breaking capacity : 18 kA 480 V AC 50/60 Hz
- breaking capacity : 20 kA 250 V DC
- breaking capacity : 25 kA 240 V AC 50/60 Hz UL 489
- Breaking capacity code : D
- By Schneider : Yes
- Carbon footprint (kg CO2 eq, Total Life cycle) : 246
- circuit breaker application : HACR rated
- Color : Black
- Communication Interface : Ethernet
- Communication Interface : Modbus
- continuous current rating : 80 %
- Depth : 3.4 in (86 mm)
- Electrical Connection : I-Line connection, line
- Electrical Connection : Lugs, load
- Final Result for Connectable : Connectable with upgrade
- Final Result for Flywheel performance tracking : Connectable products
- Global Keywords : 100 a
- Global Keywords : 100 amp
- Global Keywords : 14 kA
- Global Keywords : 3P
- Global Keywords : 3-pole
- Global Keywords : CB
- Global Keywords : Circuitbreaker
- Global Keywords : H-Frame
- Global Keywords : MCCB
- Global Keywords : Molded-case
- Global Keywords : Power pact H
- Global Keywords : PP H
- Global Keywords : Thermal-magnetic
- Global Keywords : Three-pole
- Global warming ; Total life cycle? : 246 kg CO2 eq.
- Height : 6.4 in (163 mm)
- IP Degree of Protection : Front cover IP40 IEC 60529
- Line Rated Current : 100 A
- Local Signalling : Switched off (OFF) 1 trip indicator green)
- magnetic hold current : 900 A
- magnetic tripping current : 1700 A
- Manufacturer : Schneider Electric
- Mounting Height : 4.5 in (114.3 mm)
- Mounting Mode : I-Line bracket)
- Mounting Support : Bracket
- Net Weight : 4.9 lb(US) (2.2 kg)
- Network Frequency : 50/60 Hz
- Number Of Slots : 1 alarm switch SD plug-in)
- Number Of Slots : 1 overcurrent trip switch SDE plug-in)
- Number Of Slots : 1 voltage release MN or MX plug-in)
- Number Of Slots : 2 auxiliary switch OF plug-in)
- Number of Units in Package 2 : 56
- Operating Altitude : 5000 m with derating
- Override : Toggle
- Package 2 Height : 28.00 in (71.120 cm)
- Package 2 Length : 48.00 in (121.920 cm)
- Package 2 Weight : 345.800 lb(US) (156.852 kg)
- Package 2 width : 40.00 in (101.600 cm)
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : No
- phase connection : ABC
- Pollution Degree : 3 IEC 60947-1
- Product Certifications : CSA
- Product Certifications : NOM
- Product Certifications : UL
- Product Name : PowerPact H
- Product Or Component Type : Circuit breaker
- protected poles description : 3t
- PVC free : Yes
- Quality Labels : CE
- Quantity Per Set : 1
- Range : PowerPact
- Removable battery : No
- Standards : CSA
- Standards : IEC 60947-2
- Standards : NEMA
- Standards : NOM-003-SCFI-2000
- Standards : UL
- suitability for isolation : Yes IEC 60947-2
- Take-back : No
- Temperature Ambient Operating Range : -13…158 °F (-25…70 °C)
- Temperature Shipping and Storage Range : -58…185 °F (-50…85 °C)
- Terminal Identifier : AL150HD
- Trip Unit Technology : Thermal-magnetic
- Type Of Network : 3P
- Unit Type of Package 2 : PAL
- UNSPSC Classification v19 : 39121601
- UNSPSC Classification v23 : 39121601
- utilisation category : Category A
- Volume of Package 2 : 880968.561 cm3
- Warranty : 18 months
- Width : 4.09 in (104 mm)
- Wire Stripping Length : 0.6 in (16 mm)
