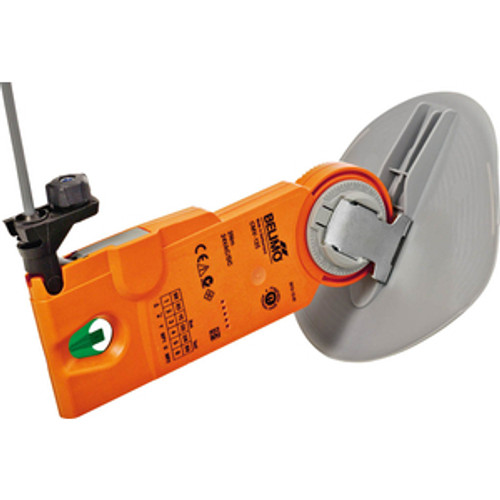

VAV control unit CMV 5" [DN 125], 18 in-lb [2 Nm], AC/DC 24 V, MP-Bus, 2...10 V, 70 s, IP00
- Voltage AC/DC : AC/DC\xa024\xa0V
- Power Consumption (Running) : 1.5 W
- Power Consumption (Holding) : 1 W
- Power Consumption For Wire Sizing : 2 VA
- Connection Supply Control : Cable 3\xa0ft.\xa0[1\xa0m], 4x 0.34\xa0mm²
- Torque : 18\xa0in-lb [2\xa0Nm]
- Control Type : MP-Bus ; DC\xa02...10\xa0V ; DC\xa00.5...10\xa0V
- Manual Override : Disengage with magnet
- Angle of Rotation : 70
- Running Time (Motor) : 70\xa0s
- Protection category : IP00
- Degree Of Protection NEMA : NEMA\xa01
- Enclosure Type : UL\xa0Enclosure\xa0Type\xa01
- Ambient Temperature : 32...122°F [0...50°C ]
