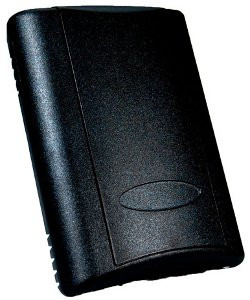

NLO-CO2 WALL ECON 10K T3 BLK H
- Application : Wall
- Application Zone : Living Space
- CO2 Measurement Accuracy : +/-30 ppm +/-2% of measured value
- CO2 Measurement Range : 0-2000 ppm
- CO2 Measurement Repeatability : +/-20 ppm +/-1% of measured value
- CO2 Sensor Type : Non-dispersive infrared (NDIR)
- Color : Black
- Dimension Depth : 30 mm (1.2 ")
- Dimension Height : 122 mm (4.8 ")
- Dimension Width : 89 mm (3.5 ")
- Electrical Wiring Size : 24-18 AWG
- Enclosure Material : ABS plastic
- Measurement Type : CO2
- Mounting : Wall
- Operating Humidity : 0 to 95% RH, non-condensing
- Operating Temperature : 0 to 50 C (32 to 122 F)
- Output Specifications : 0-10 VDC, 4-20 mA
- Outputs : Analog Output
- Override : No
- Product Certifications : CE
- Product Type : Sensor
- Range : CWE
- Response Time : CO2: Less than 60 seconds for 90% step change
- Setpoint : No
- Supply Voltage AC Nominal : 24 VAC
- Supply Voltage DC Nominal : 20-30 VDC
- Warranty : 3 years
