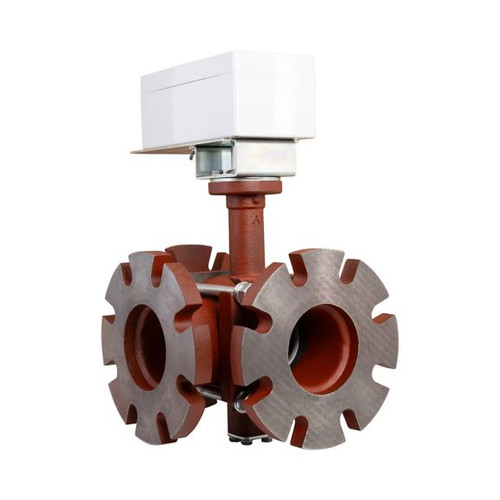

Product pictures shown represent the general type of component listed.The product you select might not exactly match the photo.

VBF2JT1SRB/M - Control Ball Valve: 2-way: Modulating: 4in: Flanged: 118Cv: NEMA 3R: Non-Spring Return

$2,480.00
(No reviews yet) Write a Review
SKU:
VBF2JT1SRB/M
Adding to cart… The item has been added
The VBF2 Two-Way and the VBF3 Three-Way Ball Valve Assemblies, with and without actuators, control hot and chilled water with glycol solutions up to 50% in heating, ventilating, and air conditioning (HVAC) systems to provide two-position or modulating f
Actuator Voltage :
24V AC/DC
Overall Depth :
9.01574803149606in
Maximum Body Pressure Rating :
1655kilopascal; 240pounds per square inch
Overall Width :
337mm
Actuator Timing :
90sec
Maximum Differential Pressure :
70psi
Actuator Power Consumption :
5VA
Overall Height :
476mm
Pipe Connection Size :
100decinewton metre; 4inch
Flow Coefficient :
118Cv
Close-Off :
70psi
Valve Pressure Rating :
240psi
Minimum Medium Temperature :
-30°C
Actuator Torque :
88in·lb
Minimum Ambient Temperature Rating :
-4°F
Maximum Medium Temperature :
250°F
Maximum Ambient Temperature Rating :
60°C
Valve Size Diameter :
4in
PDF_1 :
https://prod-edam.honeywell.com/content/dam/honeywell-edam/hbt/en-us/documents/literature-and-specs/datasheets/63-2649.pdf
PDF_2 :
https://prod-edam.honeywell.com/content/dam/honeywell-edam/hbt/en-us/documents/literature-and-specs/datasheets/63-2649.pdf
PDF_3 :
https://prod-edam.honeywell.com/content/dam/honeywell-edam/hbt/en-us/documents/manuals-and-guides/reference-guides/63-7035.pdf
PDF_4 :
https://prod-edam.honeywell.com/content/dam/honeywell-edam/hbt/en-us/documents/manuals-and-guides/reference-guides/63-8552.pdf
