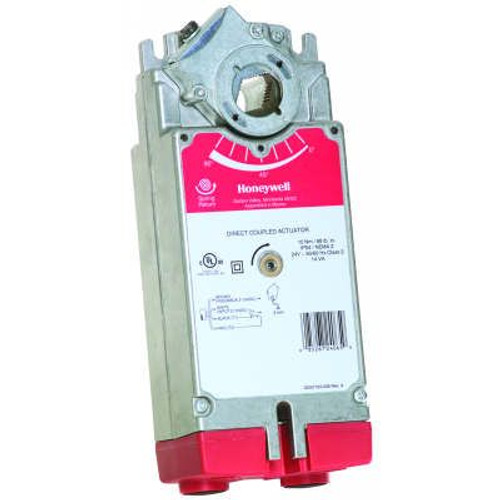

Sylk-enabled Spring Return 175 lb-in.: 20 Nm: Direct Coupled Actuator with 2 End Switches
- Maximum Return Timing : 20second (time unit)
- Feedback Included : Yes
- Overall Height : 9.72in
- Minimum Storage Temperature : -40°F
- Supply Voltage : 24V AC/DC
- Spring Return : Yes
- Overall Depth : 75mm
- Angle of Rotation : 95degree
- Overall Width : 3.94in
- Includes : Mounting bracket
- Driving Power Consumption : 16VA
- Spring Return Orientation : CW or CCW (based on actuator orientation)
- Driving Noise Rating : 40weight decibel relative loudness measured at one meter
- Operating Torque : 20Nm
- Holding Power Consumption : 5VA
- Maximum Shaft Diameter : 1in round
- Maximum Storage Temperature : 70°C
- Maximum Operating Humidity : 95percentage humidity non condensing
- NEMA Rating : NEMA 2
- Minimum Shaft Diameter : 0.375inch
- Runtime : 90 s
- Minimum Operating Humidity : 5percentage humidity non condensing
- Supply Voltage Frequency : 50/60Hz
- Application : HVAC
- Number of End Switches : 2
- Power Loss Action : Spring return
- Maximum Angle Of Rotation : 95°
- Maximum Operating Ambient Temperature : 60°C
- Maximum Storage Temperature : 158°F; 70°C
- Minimum Operating Ambient Temperature : -40°F
