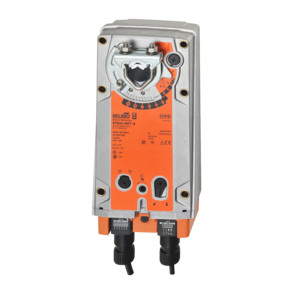

ConfigurableDamper Actuator, 270 in-lb [30 Nm], Spring return, AC/DC 24 V, modulating, 2 x SPDT, 2...10 V
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 8 W
- Power Consumption (Holding) : 4.5 W
- Power Consumption For Wire Sizing : 14 VA
- Auxiliary Switches : 2x SPDT
- Torque : 270 in-lb [30 Nm]
- Control Type : DC 2...10 V
- Direction Of Motion Motor : selectable with switch 0/1
- Direction of Rotation (Fail-Safe) : Reversible with cw/ccw mounting
- Manual Override : 5 mm hex crank (3/16" Allen), supplied
- Angle of Rotation : 95
- Running Time (Motor) : 95 s / 90°
- Running Time (Fail-safe) : <20 s
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
- Ambient Temperature : -22...122°F [-30...50°C]
