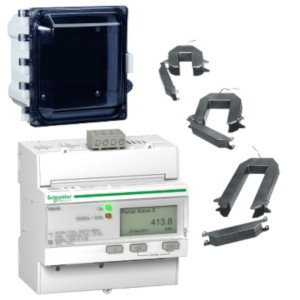

Energy meter kits for 120V & 277V L-N, A9MEM3455 meter, 1- 200A Size 1 Split Core LVCT, NEMA Type 4X Enclosure
- Ambient Air Temperature For Operation : -13…158 °F (-25…70 °C)~~
- Application : Multi-tariff
- Application : Partial meter
- Application : Sub billing
- Brand : Schneider Electric
- By Schneider : Yes
- Communication Port Protocol : Modbus RTU 9.6, 19.2 and 38.4 kbauds even/odd or none
- Communication Port Support : Screw terminal block RS485
- Connections - Terminals : Communication screw terminals 0.004 in² (2.5 mm²)
- Connections - Terminals : Current circuit screw terminals 0.009 in² (6 mm²)
- Connections - Terminals : Input/output circuit screw terminals 0.002 in² (1.5 mm²)
- Connections - Terminals : Voltage circuit screw terminals 0.004 in² (2.5 mm²)
- current transformer type : Split core balance
- Display Type : LCD display
- Enclosure Mounting : Wall mounted
- Final Result for Connectable : Connectable ready
- Final Result for Flywheel performance tracking : Edge control
- Indivisible Sale Qty : 1
- Life cycle Comment : Commercialised to support Veris withdrawal
- Line Rated Current : 200 A
- Local Signalling : alarm overload
- Local Signalling : Green indicator light power ON
- Local Signalling : Yellow flashing LED accuracy checking
- Local Signalling : Yellow indicator light communications are active on the Modbus port (Modbus)
- Manufacturer : Schneider Electric
- Measurement Accuracy : 1 % 10...100 %
- Metering Type : Active, reactive, apparent energy (signed, four quadrant)
- Mounting Mode : Clip-on
- Mounting Support : DIN rail
- NEMA Protection Rating : NEMA 4X
- Network Frequency : 50 Hz
- Network Frequency : 60 Hz
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : No
- Product Certifications : ANSI
- Product Certifications : CSA
- Product Certifications : UL
- Product Or Component Type : Energy meter kit
- Provided Equipment : 1 enclosure
- Provided Equipment : 1 energy meter
- Provided Equipment : 1 x 200 A current transformer
- Rated Voltage : 100…277 V +/- 20 %
- Rated Voltage : 173…480 V +/- 20 %
- Take-back : No
- Technology Type : Electronic
- Tightening Torque : Communication 4.4 lbf.in (0.5 N.m) Philips
- Tightening Torque : Current circuit 7.08 lbf.in (0.8 N.m) pozidriv
- Tightening Torque : Input/output circuit 4.4 lbf.in (0.5 N.m) Philips
- Tightening Torque : Voltage circuit 4.4 lbf.in (0.5 N.m) Philips
- Type Of Measurement : Active and reactive energy
- Type Of Measurement : Active and reactive power
- Type Of Measurement : Current
- Type Of Measurement : Voltage
- Type Of Network : 1P + N
- Type Of Network : 3P
- Type Of Network : 3P + N
- UNSPSC Classification v19 : 41113643
- UNSPSC Classification v23 : 41113643
