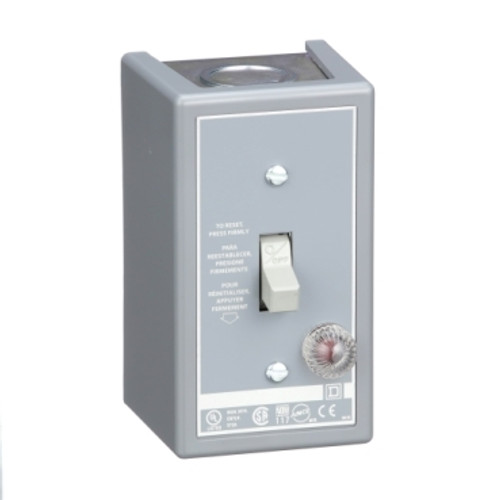

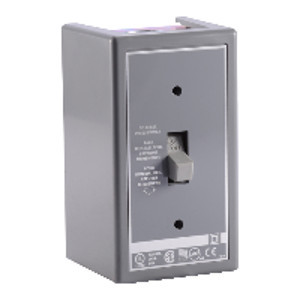

Square D 2510F fractional motor manual starter provide overload protection and manual On Off control for small single phase AC motors. Open style starter fits industry standard single-gang switch boxes for direct mounting in a wall or machine using any standard cover plate with a standard single cutout. Overload heater element is ordered separately to match motor data. Pilot light option is available. A variety of enclosures are available. Units are UL Listed and CSA Certified for global applications. This 1 pole nonreversing manual starter has a 16A current rating. Starter has a 1 HP rating at 115, 230, and 277 VAC. This NEMA 1 general purpose enclosure is a surface mounting enclosure. This manual starter is 4.25 inches tall, 2.44 inches wide and 2.75 inches deep. It weighs 0.79 lb. This device is without a pilot light indicator. Manual starter is UL listed and CSA certified.
- Product : Single Unit Manual Starter
- Type : F
- Overload Relay Type : Melting alloy
- Current Rating : 16 A
- Cable entry : 0.5\" and 0.75\" knock-outs (top and bottom)
- Horsepower Rating : 1 hp 115 V AC, 1 hp 230 V AC, 1 hp 277 V AC
- Voltage Rating : 277 V AC
- Number of Poles : 1P
- Control Unit : Toggle switch
- Number of Phases : 1 phase
- Pilot Light : No indicator
- Reset : Manual
- Motor starter type : Non reversing
- Electrical Connection : Screw clamp terminals
- Wire Gauge : AWG 14...AWG 12 copper
- Height : 4.25 in (107.95 mm)
- Width : 2.44 in (61.98 mm)
- Depth : 2.75 in (69.85 mm)
- Net Weight : 0.79 lb(US) (0.36 kg)
- Product Certifications : UL listed file E42243 CCN NLRV, CSA LR25490 class 3211 05
- NEMA Enclosure Rating : NEMA 1 Plastic standard size
- Category : US10CP121101
- Discount Schedule : 0CP1
- GTIN : 785901553939
- Returnability : Yes
- Country of origin : MX
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 2.60 in (6.6 cm)
- Package 1 Width : 3.23 in (8.2 cm)
- Package 1 Length : 5.00 in (12.7 cm)
- Package 1 Weight : 12.32 oz (349.3 g)
- Unit Type of Package 2 : CAR
- Number of Units in Package 2 : 21
- Package 2 Height : 8.80 in (22.352 cm)
- Package 2 Width : 8.10 in (20.574 cm)
- Package 2 Length : 14.40 in (36.576 cm)
- Package 2 Weight : 16.84 lb(US) (7.638 kg)
- Warranty : 18 months
