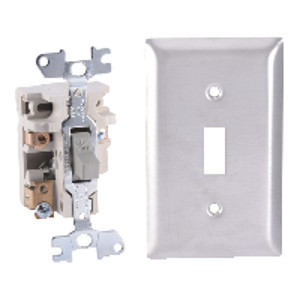

Square D Type F Manual starters provide overload protection and manual On-Off control for small single phase AC motors. Flush mounted units can be mounted in a standard switch box or in a machine cavity without a box. Overload heater element is ordered separately to match motor data. Units are UL Listed, CSA Certified and CE Marked for global applications. Fractional Motor Starters. Designed for fractional single phase motors up to 1 HP. Provides easy manual “On-Off” control of small motors. Provide melting alloy overload protection for motors. Intended for industrial and commercial applications. Enclosed or open versions to suit most application environments. Can be easily installed. UL, CSA and CE approvals.
- Product : Single Unit Manual Starter
- Type : F
- Overload Relay Type : Melting alloy
- Current Rating : 16 A
- Cable entry : Without
- Horsepower Rating : 1 hp 115 V AC, 1 hp 230 V AC, 1 hp 277 V AC
- Voltage Rating : 277 V AC
- Number of Poles : 1P
- Control Unit : Toggle switch
- Number of Phases : 1 phase
- Pilot Light : No indicator
- Reset : Manual
- Motor starter type : Non reversing
- Electrical Connection : Screw clamp terminals
- Wire Gauge : AWG 14...AWG 12 copper
- Height : 4.5 in (114.30 mm)
- Width : 2.75 in (69.85 mm)
- Depth : 2.19 in (55.63 mm)
- Product Certifications : UL listed file E42243 CCN NLRV, CSA LR25490 class 3211 05
- NEMA Enclosure Rating : Not rated (flush plate) Stainless Steel standard size
- Category : US10CP121101
- Discount Schedule : 0CP1
- GTIN : 785901554233
- Returnability : Yes
- Country of origin : MX
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 2.01 in (5.1 cm)
- Package 1 Width : 2.91 in (7.4 cm)
- Package 1 Length : 4.69 in (11.9 cm)
- Package 1 Weight : 6.88 oz (195.0 g)
- Warranty : 18 months
