Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. It can be retrofitted with all XB5 series push buttons, pilot lights, selector switches and joysticks. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

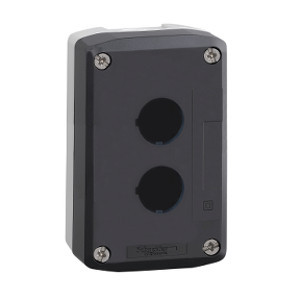

- Range of Product : Harmony XALD
- Product or Component Type : Empty control station
- Device short name : XALD
- Product destination : For XB5 Ø 22 mm control and signalling units
- Number of cut-out : 2 cut-outs
- Colour of base of enclosure : Light grey RAL 7035)
- Colour of cover : Dark grey RAL 7016)
- Material : Polycarbonate
- IP degree of protection : IP66 IEC 60529, IP67, IP69, IP69K
- Assembly style : For customer assembly
- Number of horizontal rows : 1
- Number of vertical rows : 2
- Net Weight : 0.45 lb(US) (0.205 kg)
- Resistance to high pressure washer : 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
- Mounting of block : Rear mounting, Front mounting
- Electrical composition code : SF2, MF1, MF2, SF1, SR2, PF2, PF1, PR1, MR1, SR1
- Main group : 2 cut-outs
- Group of product : UL-CSA grey
- Protective treatment : TH
- Ambient Air Temperature for Storage : -40…158 °F (-40…70 °C)
- Ambient Air Temperature for Operation : -40…158 °F (-40…70 °C)
- Overvoltage category : Class II IEC 60536
- NEMA degree of protection : NEMA 13, NEMA 4X
- IK degree of protection : IK03 conforming to EN 50102
- Product Certifications : UL, CSA
- Category : US10CS222475
- Discount Schedule : 0CS2
- GTIN : 3389110114935
- Returnability : Yes
- Country of origin : CZ
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 4.33 in (11.0 cm)
- Package 1 Width : 2.76 in (7.0 cm)
- Package 1 Length : 3.15 in (8.0 cm)
- Package 1 Weight : 6.74 oz (191.0 g)
- Unit Type of Package 2 : S03
- Number of Units in Package 2 : 36
- Package 2 Height : 11.81 in (30.0 cm)
- Package 2 Width : 11.81 in (30.0 cm)
- Package 2 Length : 15.75 in (40.0 cm)
- Package 2 Weight : 16.16 lb(US) (7.33 kg)
- Warranty : 18 months
