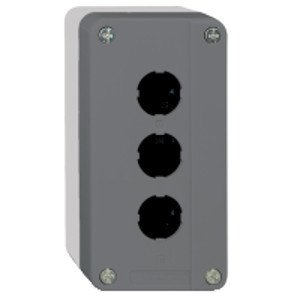

This Harmony XALD empty control station has 3 cut-out for 3 push buttons / 3 functions for controlling of operation in machines. This 3 cut-out dark grey empty control station enables machine builders to customize their machines by easily adding any control and signalling functionality units on the enclosure according to the operation required. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. It can be retrofitted with all XB5 series push buttons, pilot lights, selector switches and joysticks. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Range of Product : Harmony XALD
- Product or Component Type : Empty control station
- Device short name : XALD
- Product destination : For XB5 Ø 22 mm control and signalling units
- Number of cut-out : 3 cut-outs
- Colour of base of enclosure : Light grey RAL 7035)
- Colour of cover : Dark grey RAL 7016)
- Material : Polycarbonate
- IP degree of protection : IP66 IEC 60529, IP67, IP69, IP69K
- Assembly style : For customer assembly
- Number of horizontal rows : 1
- Number of vertical rows : 3
- Net Weight : 0.52 lb(US) (0.238 kg)
- Resistance to high pressure washer : 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
- Mounting of block : Rear mounting, Front mounting
- Electrical composition code : PF2, MR1, SF1, MF2, SF2, SR2, SR1, PR1, PF1, MF1
- Main group : 3 cut-outs
- Group of product : UL-CSA grey
- Protective treatment : TH
- Ambient Air Temperature for Storage : -40…158 °F (-40…70 °C)
- Ambient Air Temperature for Operation : -40…158 °F (-40…70 °C)
- Overvoltage category : Class II IEC 60536
- NEMA degree of protection : NEMA 13, NEMA 4X
- IK degree of protection : IK03 conforming to IEC 62262
- Product Certifications : UL, CSA
- Category : US10CS222475
- Discount Schedule : 0CS2
- GTIN : 3389110114942
- Returnability : Yes
- Country of origin : MX
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 2.76 in (7.000 cm)
- Package 1 Width : 3.07 in (7.800 cm)
- Package 1 Length : 5.51 in (14.000 cm)
- Package 1 Weight : 8.25 oz (234.000 g)
- Unit Type of Package 2 : S03
- Number of Units in Package 2 : 30
- Package 2 Height : 11.81 in (30 cm)
- Package 2 Width : 11.81 in (30 cm)
- Package 2 Length : 15.75 in (40 cm)
- Package 2 Weight : 16.41 lb(US) (7.443 kg)
- Unit Type of Package 3 : P06
- Number of Units in Package 3 : 240
- Package 3 Height : 30.31 in (77.000 cm)
- Package 3 Width : 23.62 in (60.000 cm)
- Package 3 Length : 31.50 in (80.000 cm)
- Package 3 Weight : 148.69 lb(US) (67.445 kg)
- Warranty : 18 months
