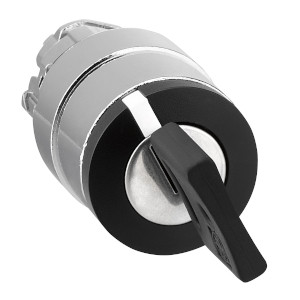

Harmony XB4 - KEY SWITCH 2 fix position
- bezel material : Chromium plated metal~~
- Brand : Schneider Electric
- By Schneider : Yes
- CAD overall depth : 2.8 in (72 mm)
- CAD overall height : 1.1 in (29 mm)
- CAD overall width : 1.1 in (29 mm)
- cap/operator or lens colour : Black
- Carbon footprint (kg CO2 eq, Total Life cycle) : 1
- customizable : 0
- customizable : No
- Device Presentation : Basic element
- Device Short Name : ZB4
- electrical composition code : C11 3 single front mounting
- electrical composition code : C15 1 single front mounting
- electrical composition code : C3 6 single front mounting
- electrical composition code : C4 6 single and double front mounting
- electrical composition code : C5 5 single front mounting
- electrical composition code : C6 5 single and double front mounting
- electrical composition code : C7 4 single front mounting
- electrical composition code : C8 4 single and double front mounting
- Final Result for Connectable : Connectable with upgrade
- Final Result for Flywheel performance tracking : Connectable products
- Global Keywords : 2-position
- Global Keywords : Black
- Global Keywords : Chromium plated metal bezel
- Global Keywords : Circular
- Global Keywords : Dust resistant
- Global Keywords : Harmony
- Global Keywords : Head only
- Global Keywords : Impact resistant
- Global Keywords : Key no. 455
- Global Keywords : Key switch
- Global Keywords : Left position key withdrawal
- Global Keywords : Modular
- Global Keywords : Schneider electric
- Global Keywords : Stay-put
- Global Keywords : Water Resistant
- Global Keywords : XB4
- Global warming ; Total life cycle? : 1 kg CO2 eq.
- group of product : Key switch
- head type : Standard
- IK Degree of Protection : IK06 with keyhole cover ZBGP conforming to IEC 50102
- IP Degree of Protection : IP66 IEC 60529
- IP Degree of Protection : IP67
- IP Degree of Protection : IP69
- IP Degree of Protection : IP69K
- key withdrawal position : Left
- main group : Selector switch
- Manufacturer : Schneider Electric
- Mechanical Durability : 1000000 cycles
- mounting diameter : 0.9 in (22 mm)
- NEMA degree of protection : NEMA 13
- NEMA degree of protection : NEMA 4X
- Net Weight : 0.216 lb(US) (0.098 kg)
- Number of Units in Package 2 : 100
- Number of Units in Package 3 : 800
- operator position information : 2 positions 90°
- operator profile : Black key switch
- Overvoltage Category : Class I conforming to IEC 60536
- Package 2 GTIN : 43389110889213
- Package 2 Height : 11.81 in (30.000 cm)
- Package 2 Length : 15.75 in (40.000 cm)
- Package 2 Weight : 24.229 lb(US) (10.990 kg)
- Package 2 width : 11.81 in (30.000 cm)
- Package 3 Height : 29.53 in (75.000 cm)
- Package 3 Length : 31.50 in (80.000 cm)
- Package 3 Weight : 218.267 lb(US) (99.004 kg)
- Package 3 width : 23.62 in (60.000 cm)
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : No
- Product Certifications : BV
- Product Certifications : CSA
- Product Certifications : DNV
- Product Certifications : LROS (Lloyds register of shipping)
- Product Certifications : UL Listed
- Product Or Component Type : Head for key selector switch
- Protective Treatment : TH
- resistance to high pressure washer : 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
- sale per indivisible quantity : 1
- SCIP Number : F28cb399-1b6a-409d-ac7b-4169e47b25c8
- shape of signaling unit head : Round
- shock resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
- shock resistance : 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Standards : CSA C22.2 No 14
- Standards : EN/IEC 60947-1
- Standards : EN/IEC 60947-5-1
- Standards : EN/IEC 60947-5-4
- Standards : EN/IEC 60947-5-5
- Standards : GB 14048.5
- Standards : UL 508
- Take-back : No
- Temperature Ambient Operating Range : -40…158 °F (-40…70 °C)
- Temperature Shipping and Storage Range : -40…158 °F (-40…70 °C)
- Type Of Keylock : Key 455
- Unit Type of Package 2 : S03
- Unit Type of Package 3 : P06
- UNSPSC Classification v19 : 39122221
- UNSPSC Classification v23 : 39122221
- vibration resistance : 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
- Volume of Package 2 : 36000.000 cm3
- Volume of Package 3 : 360000.000 cm3
- Warranty : 18 months
