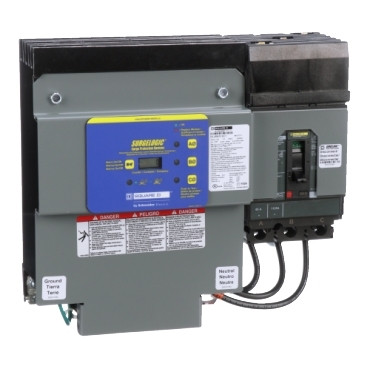

Surgelogic™ EMA and EBA series SPDs offer a full range of externally mounted surge suppression solutions. These units are designed to provide surge suppression from service entrance panels to point-of-use equipment. US and Canadian UL® Listed to the UL 1449 standard. Complies with requirements of NEC® Article 285 and CSA 22.2 No. 8- M1986 as appropriate. Complies with UL 96A 12th Edition Master Label requirements for Lightning Protection Systems. This Surelogic SPD device is a three phase, 4-wire grounded wye system that has a peak surge current rating of 160 kA. This device has operational voltage of 208Y/120 Vac and has a short circuit rating of 200 kA. This SPD is in a NEMA 2 enclosure that is 308.9 tall, 341.9 mm wide and 142.1 mm deep.
- Product : Surge protection device
- Range : Surgelogic
- Device Short Name : IMA
- Type : HL
- Voltage Rating : 480Y/277 V AC
- MCOV : 150 V
- SCCR : 200 kA
- Surge Current : 160 kA
- Rated Current : 60 A
- Breaking Capacity : 50 kA
- Number of Phases : 3 phase
- Max Number of Poles : 3
- Wiring Configuration : 4-wire
- Trip Unit Technology : Thermal-magnetic
- Local Signalling : Status LED green per phase normal operation, Status LED red per phase fault
- Provided Equipment : Alarm enable/disable switch, Surge counter, Circuit-breaker
- Cable length : 19.02 in (483 mm)
- Mounting Support : Panel mounting
- Height : 12.16 in (308.9 mm)
- Width : 13.46 in (341.9 mm)
- Depth : 5.59 in (142.1 mm)
- Enclosure Rating : NEMA 2
- Category : US1DE1B08460
- Discount Schedule : DE1B
- GTIN : 785901865179
- Returnability : Yes
- Country of origin : US
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 9.00 in (22.86 cm)
- Package 1 Width : 16.00 in (40.64 cm)
- Package 1 Length : 17.50 in (44.45 cm)
- Package 1 Weight : 22.19 lb(US) (10.064 kg)
- Warranty : 18 months
