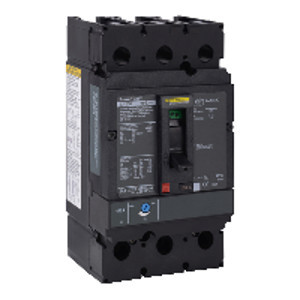

JJL36200

[Ics] rated service breaking capacity :

18 kA 500/525 V AC 50/60 Hz IEC 60947-2~~

[Ics] rated service breaking capacity :

20 kA 250 V DC IEC 60947-2

[Ics] rated service breaking capacity :

20 kA 500 V DC IEC 60947-2

[Ics] rated service breaking capacity :

35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2

[Ics] rated service breaking capacity :

65 kA 220/240 V AC 50/60 Hz IEC 60947-2

[Ue] rated operational voltage :

600 V AC 50/60 Hz IEC 60947-3

[Ui] rated insulation voltage :

750 V IEC 60947-2

[Uimp] rated impulse withstand voltage :

8 kV IEC 60947-2

Application :

Distribution

AWG Gauge :

AWG 3/0...350 kcmil aluminium/copper terminals

Brand :

Square D

breaking capacity :

100 kA 240 V AC 50/60 Hz UL 489

breaking capacity :

20 kA 250 V DC UL 489

breaking capacity :

25 kA 600 V AC 50/60 Hz UL 489

breaking capacity :

65 kA 480 V AC 50/60 Hz UL 489

Breaking capacity code :

J

By Schneider :

Yes

Carbon footprint (kg CO2 eq, Total Life cycle) :

472

circuit breaker application :

HACR rated

Communication Interface :

Ethernet

Communication Interface :

Modbus

continuous current rating :

80 %

Depth :

3.4 in (86 mm)

Electrical Connection :

Lugs, line

Electrical Connection :

Lugs, load

Final Result for Connectable :

Connectable with upgrade

Final Result for Flywheel performance tracking :

Connectable products

Global Keywords :

200 amp

Global Keywords :

200a

Global Keywords :

25 kA

Global Keywords :

3P

Global Keywords :

CB

Global Keywords :

Circuitbreaker

Global Keywords :

J-Frame

Global Keywords :

Lugs

Global Keywords :

Lugs connection

Global Keywords :

MCCB

Global Keywords :

Molded case

Global Keywords :

Powerpact j

Global Keywords :

Pp j

Global Keywords :

Thermal magnetic

Global Keywords :

Thermal-magnetic

Global Keywords :

Three-pole

Global warming ; Total life cycle? :

472 kg CO2 eq.

Height :

7.5 in (191 mm)

IP Degree of Protection :

Front cover IP40

Line Rated Current :

200 A

Local Signalling :

Switched off (OFF) 1 trip indicator green)

Long Time Pick-Up Adjustment Range :

0.25...1 x In

magnetic hold current :

1000 A

magnetic tripping current :

2000 A

Manufacturer :

Schneider Electric

Mounting Height :

4.5 in (114.3 mm)

Mounting Mode :

Unit mount lug)

Mounting Support :

Lug

Net Weight :

5.3 lb(US) (2.4 kg)

Network Frequency :

50/60 Hz

Number Of Slots :

1 alarm switch SD plug-in)

Number Of Slots :

1 overcurrent trip switch SDE plug-in)

Number Of Slots :

1 voltage release MN or MX plug-in)

Number Of Slots :

2 auxiliary switch OF plug-in)

Number of Units in Package 2 :

78

Operating Altitude :

5000 m with derating

Override :

Toggle

Package 2 Height :

22.50 in (57.150 cm)

Package 2 Length :

48.00 in (121.920 cm)

Package 2 Weight :

405.999 lb(US) (184.158 kg)

Package 2 width :

40.00 in (101.600 cm)

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

No

phase connection :

ABC

Pollution Degree :

3 IEC 60947-1

Product Certifications :

CSA

Product Certifications :

NOM

Product Certifications :

UL

Product Name :

PowerPact J

Product Or Component Type :

Circuit breaker

Protection Type :

overload protection

Protection Type :

Short-circuit protection

PVC free :

Yes

Quality Labels :

CE

Range :

PowerPact

Standards :

CSA

Standards :

IEC 60947-2

Standards :

NEMA

Standards :

NOM-003-SCFI-2000

Standards :

UL

suitability for isolation :

Yes IEC 60947-2

Take-back :

No

Temperature Ambient Operating Range :

-13…158 °F (-25…70 °C)

Temperature Shipping and Storage Range :

-58…185 °F (-50…85 °C)

Terminal Identifier :

AL250JD

Tightening Torque :

221.3 lbf.in (25 N.m) 0.1…0.3 in² (95…185 mm²) (AWG 3/0...350 kcmil)

Trip Unit Technology :

Thermal-magnetic

Type Of Network :

3P

Unit Type of Package 2 :

PAL

UNSPSC Classification v19 :

39121601

UNSPSC Classification v23 :

39121601

utilisation category :

Category A

Volume of Package 2 :

707921.165 cm3

Warranty :

18 months

Width :

4.09 in (104 mm)

Wire Stripping Length :

1.0 in (25 mm)
