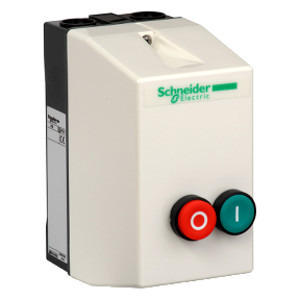

LE1D09P7

[Ithe] conventional enclosed thermal current :

9 A~~

[Uc] control circuit voltage :

230 V AC 50/60 Hz

Ambient Air Temperature For Operation :

23…104 °F (-5…40 °C)

Application :

Standard

Brand :

Schneider Electric

By Schneider :

Yes

cable entry number :

2 ISO20 bottom

cable entry number :

2 ISO20 top

California proposition 65 :

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Carbon footprint (kg CO2 eq, Total Life cycle) :

107

Control Type :

Push-button start Green I

Control Type :

Push-button stop/reset Red O

Depth :

5.06 in (128.5 mm)

Device Composition :

Contactor

Device Composition :

Thermal overload relay ordered separately

Device Short Name :

LE1D

Environmental Characteristic :

Standard environment

Final Result for Flywheel performance tracking :

Non Flywheel

Global Keywords :

AC control

Global warming ; Total life cycle? :

107 kg CO2 eq.

Height :

6.5 in (166 mm)

IK Degree of Protection :

IK07 conforming to IEC 60529

IP Degree of Protection :

IP65 IEC 60529

Manufacturer :

Schneider Electric

Material :

Polycarbonate

motor power kW :

2.2 kW 220/230 V AC 50/60 Hz

motor power kW :

4 kW 380/400 V AC 50/60 Hz

motor power kW :

4 kW 415 V AC 50/60 Hz

motor power kW :

4 kW 440 V AC 50/60 Hz

motor power kW :

5.5 kW 500 V AC 50/60 Hz

motor power kW :

5.5 kW 660/690 V AC 50/60 Hz

Net Weight :

2.03 lb(US) (0.92 kg)

Number of Units in Package 2 :

30

Package 2 GTIN :

43389110541241

Package 2 Height :

29.53 in (75.000 cm)

Package 2 Length :

31.50 in (80.000 cm)

Package 2 Weight :

87.391 lb(US) (39.640 kg)

Package 2 width :

23.62 in (60.000 cm)

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

Yes

Product Certifications :

UKCA

Product Name :

TeSys LE

Product Or Component Type :

Enclosed DOL starter

Range :

TeSys

Standards :

IEC 60947-4-1

Sustainable packaging :

Yes

Take-back :

No

Toxic heavy metal free :

Yes

Unit Type of Package 2 :

P06

UNSPSC Classification v19 :

39121521

UNSPSC Classification v23 :

39121521

utilisation category :

AC-3

Volume of Package 2 :

360000.000 cm3

Warranty :

18 months

Width :

3.5 in (88 mm)
