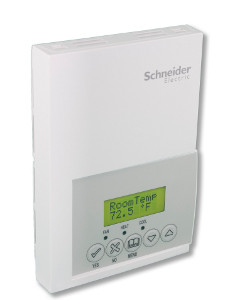

SE7656E5045

[Us] rated supply voltage :

10...30 V AC 50/60 Hz

Accuracy :

+/- 3 % analog output

Application :

Indoor air quality (IAQ) ; Staging equipment (RTU/HP)

AWG Gauge :

AWG 22...AWG 18

Brand :

Schneider Electric

By Schneider :

Yes

Communication Port Protocol :

Stand-Alone (Network Ready)

Connections - Terminals :

Screw terminal

Contact Operation :

5 standard push-button

Depth :

1.18 in (29.97 mm)

Device Presentation :

Without cover

Device Short Name :

SE7600E

Economizer :

Yes

Final Result for Connectable :

Connectable ready

Final Result for Flywheel performance tracking :

Edge control

Height :

4.92 in (124.97 mm)

Humidity Calibration Certificate :

1 pt

Humidity Control :

No

Humidity Setting Range :

Dehumidification 30…95 %

Information Displayed :

Temperature - 40...122 °F

Input Type :

Analog 2

Input Voltage :

0…10 V DC

Manufacturer :

Schneider Electric

Market Segment :

Residential

Measurement Accuracy :

Humidity +/- 5 %, 20...80 % RH non-condensing) ; Temperature +/- 0.9 °F, at 70 °F typically calibrated)

Net Weight :

0.75 lb(US) (0.34 kg)

Network Frequency :

50 Hz ; 60 Hz ; 1 A 30 V digital output maximum) ; 3 A 30 V digital output inrush)

Output Type :

2 xuniversal

Output Voltage :

0...10 V DC analog output ; 30 V AC digital output

PIR Cover :

No

Product Alert :

We are currently experiencing delays on this product. As we work to return it to normal, inventory and lead times may not be accurate. Please use the chat feature to contact CCC for additional details

Product Certifications :

CE ; C-tick AS/NZS CISPR 22 ; FCC CFR 47 part 15 class A ; UL listed file E27734 CCN XPAX ; UL listed file E27734 CCN XPAX7

Product Name :

SE7000 Series

Product Or Component Type :

Room controller

Product Specific Application :

2-stage cooling ; 2-stage heating

Range :

EcoStruxure Building Expert

Range Compatibility :

EcoStruxure Building Expert communication card ; EcoStruxure Building Expert relay ; EcoStruxure Building Expert sensor ; EcoStruxure Building Expert sensor coverplate ; EcoStruxure Building Expert temperature sensor

Regulation Loop :

Cooling adjustable P regulator 2 °F (-17 °C) factory settting) ; Heating adjustable P regulator 2 °F (-17 °C) factory settting)

Relative Humidity :

0…95 % RH, non-condensing

Scheduling :

Yes

Sensor Type :

10 kOhm T2 NTC thermistor ; Bulk polymer

Standards :

CSA C22.2 No 24 ; FCC part 15 subpart B ; ICES-003 ; UL 873

Storage Relative Humidity :

0…95 % RH, non-condensing

Temperature Ambient Operating Range :

32…122 °F (-0…50 °C)

Temperature Setting Range :

0.9 °F (-17 °C) per step ; 40…90 °F (4…32 °C) heating ; 54…100 °F (12…38 °C) cooling

Temperature Shipping and Storage Range :

-22…122 °F (-30…50 °C)

Width :

3.42 in (86.87 mm)
