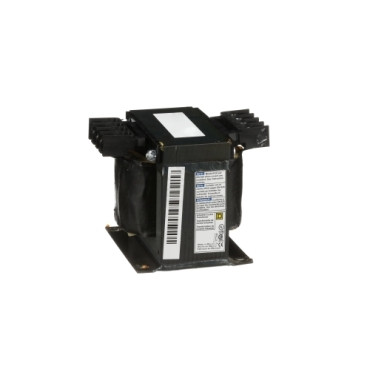

TR CT 300VA 208/230/460V-115V
- Product Type : Industrial Control Transformer
- Type : T
- Number of Phases : 1 phase
- Power Rating : 300 VA UL, 300 VA CSA, 300 VA NOM, 200 VA CE
- Primary to Secondary Voltage : 208/230/460 V 115 V
- Temperature Rise : 80 °C
- Electrical Connection : Screw clamp terminals
- Height : 3.84 in (97.54 mm)
- Width : 4.5 in (114.30 mm)
- Depth : 5.11 in (129.79 mm)
- Material : Copper: winding
- Fingersafe Cover Compatibility : FSC2
- Certifications : UL listed file E61239, CSA file LR37055 guide 184-N-90
- Enclosure Type : Not rated (open device)
- Insulation Temperature : 266 °F (130 °C)
- Category : US10CP816206
- Discount Schedule : 0CP8
- GTIN : 785901905158
- Returnability : Yes
- Country of origin : US
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 6.40 in (16.256 cm)
- Package 1 Width : 6.70 in (17.018 cm)
- Package 1 Length : 7.80 in (19.812 cm)
- Package 1 Weight : 10.20 lb(US) (4.627 kg)
- Unit Type of Package 2 : PAL
- Number of Units in Package 2 : 150
- Package 2 Height : 40.00 in (101.6 cm)
- Package 2 Width : 40.00 in (101.6 cm)
- Package 2 Length : 48.00 in (121.92 cm)
- Package 2 Weight : 1621.46 lb(US) (735.48 kg)
- Warranty : 10 Years
