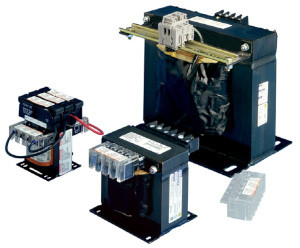

Type TF and EOF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel builders and machinery OEMs. Since the fuse blocks are pre-wired and mounted on top of the transformer, the Type TF transformers have the same footprint as the Type T. This design frees up space normally used for separate fuse blocks. Type TF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel builders and machinery OEMs. This Industrial Control Transformer is 1 phase, and has a rated power of 50 VA. This transformer has a primary voltages such as 600 V and a secondary voltage of 120 V with a temperature rise of 55 °C. The dimensions for this product are 4 in (H), 3 in (W), 3.09 in (D). This product is compatable with FSC1. This product complys to UL, CSA & NOM standards.
- Product or Component Type : Industrial Control Transformer
- Type : TF
- Number of Phases : 1 phase
- Power Rating : 50 VA UL, 50 VA CSA, 50 VA NOM, 50 VA CE
- Primary to Secondary Voltage : 600 V 120 V, 575 V 115 V, 550 V 110 V
- Fuse type : 10.3 x 38 mm CC top
- Temperature rise : 55 °C
- Electrical Connection : Screw clamp terminals
- Height : 4 in (101.60 mm)
- Width : 3 in (76.20 mm)
- Depth : 3.09 in (78.49 mm)
- Material : Copper: winding
- Fingersafe Cover Compatibility : FSC1
- Product Certifications : UL listed file E61239, CSA file LR37055 guide 184-N-90
- Enclosure Type : Not rated (open device)
- Insulation temperature : 221 °F (105 °C)
- Category : US10CP816202
- Discount Schedule : 0CP8
- GTIN : 785901845676
- Returnability : Yes
- Country of origin : MX
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 5.60 in (14.224 cm)
- Package 1 Width : 6.10 in (15.494 cm)
- Package 1 Length : 7.20 in (18.288 cm)
- Package 1 Weight : 3.10 lb(US) (1.406 kg)
- Warranty : 18 months
