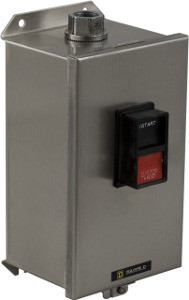

Integral Horsepower Manual Starter|Motor Power HP: 2 HP at 115V AC; 3 HP at 230V AC|Number of Phase: 1-Phase|System Voltage: 600V AC|Poles Description: 2-Pole|Control Type: Push-button|Local Signaling: No Indicator|Motor Starter Type: Non-Reversing|Electrical Connection: Pressure Wire Clamp
- [Ue] rated operational voltage : 600 V AC~~
- auxiliary contact composition : Without
- AWG Gauge : AWG 14...AWG 8 copper
- Brand : Square D
- By Schneider : Yes
- Depth : 5.76 in (146.30 mm)
- Electrical Connection : Pressure wire clamp
- Final Result for Flywheel performance tracking : Non Flywheel
- Global Keywords : Integral horsepower manual starter
- Global Keywords : Low voltage
- Global Keywords : Manual motor starter
- Global Keywords : Manual On Off control
- Global Keywords : Manual starter
- Global Keywords : Melting alloy overload relay
- Global Keywords : Motor overload protection
- Global Keywords : NEMA size 1
- Global Keywords : Push button operated
- Height : 10.92 in (277.37 mm)
- Local Signalling : No indicator
- Manufacturer : Schneider Electric
- Maximum Horse Power Rating : 2 hp 115 V AC, 1 phase
- Maximum Horse Power Rating : 3 hp 230 V AC, 1 phase
- motor starter type : Non reversing
- NEMA degree of protection : NEMA 4/4X brushed stainless steel
- NEMA size : M-1
- number of thermal units required : 1
- Override : Push-button
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : No
- Product Certifications : CSA LR60905 class 3211 05
- Product Certifications : UL listed file E42243 CCN NLRV
- Product Or Component Type : Manual Starter
- PVC free : Yes
- Take-back : No
- thermal overload type : Melting alloy
- Type Of Network : 2P
- UNSPSC Classification v19 : 39121521
- UNSPSC Classification v23 : 39121521
- Warranty : 18 months
- Width : 5.78 in (146.81 mm)
