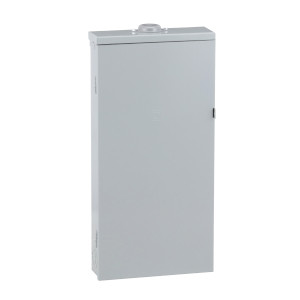

LOAD Center QO MB 240V 100A 3PH 27SP
- [Ue] rated operational voltage : 208Y/120 V AC~~
- [Ue] rated operational voltage : 240 V delta AC
- [Ue] rated operational voltage : 240/120 V delta AC
- AWG Gauge : AWG 4...AWG 2/0 aluminium/copper
- box number : 6R
- Brand : Square D
- By Schneider : Yes
- Circularity Profile : No need of specific recycling operations
- Cover Type : Surface cover
- Device Composition : Grounding bar (ordered separately)
- Electrical Connection : Lugs
- Enclosure Material : Welded galvannealed steel
- Final Result for Connectable : Not connectable
- Final Result for Flywheel performance tracking : Non Flywheel
- Global Keywords : 100 a
- Global Keywords : 27CIR
- Global Keywords : 27ckt
- Global Keywords : 27sp
- Global Keywords : 3ph
- Global Keywords : Loadcenter
- Global Keywords : MB
- Global Keywords : NEMA 3R
- Height : 29.8 in (758 mm)
- Line Rated Current : 100 A
- load center type : Main breaker
- Manufacturer : Schneider Electric
- Material : Tin plated copper: busbar
- NEMA degree of protection : NEMA 3R weatherproof enclosure
- Number Of Circuits : 27
- number of spaces : 27
- number of tandem circuit breakers : 0
- Number of Units in Package 2 : 21
- Package 2 Height : 40.00 in (101.600 cm)
- Package 2 Length : 48.00 in (121.920 cm)
- Package 2 Weight : 681.000 lb(US) (308.896 kg)
- Package 2 width : 40.00 in (101.600 cm)
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : No
- Phase : 3 phase 3 wires
- Phase : 3 phase 4 wires
- Product Certifications : UL Listed
- Product Or Component Type : Load Center
- short-circuit current : 22 kA
- Surface Finish : Baked enamel Gray
- Take-back : No
- Temperature Ambient Operating Range : 104 °F (40 °C)
- Temperature Ambient Operating Range : 23 °F (-5 °C)
- Unit Type of Package 2 : PAL
- UNSPSC Classification v19 : 39121101
- UNSPSC Classification v23 : 39121101
- Volume of Package 2 : 1258526.515 cm3
- Warranty : 18 months
- Width : 14.8 in (375 mm)
