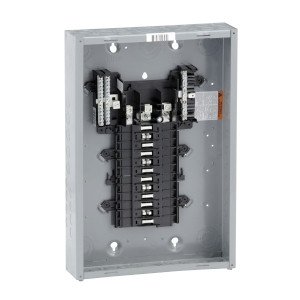

QO324L125G

[Ue] rated operational voltage :

208Y/120 V AC~~

[Ue] rated operational voltage :

240 V delta AC

[Ue] rated operational voltage :

240/120 V delta AC

AWG Gauge :

AWG 6...AWG 2/0 aluminium/copper

box number :

7

Brand :

Square D

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon footprint (kg CO2 eq, Total Life cycle) :

46

Circularity Profile :

No need of specific recycling operations

Cover Type :

Order separately

Device Composition :

Grounding bar included (not installed)

Electrical Connection :

Lugs

Enclosure Material :

Welded sheet steel

Final Result for Connectable :

Not connectable

Final Result for Flywheel performance tracking :

Non Flywheel

Global Keywords :

ground

Global Keywords :

125 A

Global Keywords :

24CIR

Global Keywords :

24ckt

Global Keywords :

24sp

Global Keywords :

3ph

Global Keywords :

Grd

Global Keywords :

Loadcenter

Global Keywords :

NEMA 1

Global warming ; Total life cycle? :

46 kg CO2 eq.

Height :

20.9 in (531 mm)

Line Rated Current :

125 A

load center type :

Fixed Mains (lugs)

Manufacturer :

Schneider Electric

Material :

Tin plated copper: busbar

NEMA degree of protection :

NEMA 1 indoor enclosure

Number Of Circuits :

24

number of spaces :

24

number of tandem circuit breakers :

0

Number of Units in Package 2 :

45

Package 2 Height :

40.00 in (101.600 cm)

Package 2 Length :

48.00 in (121.920 cm)

Package 2 Weight :

599.0009 lb(US) (271.702 kg)

Package 2 width :

40.00 in (101.600 cm)

Packaging made with recycled cardboard :

No

Packaging without single use plastic :

No

Phase :

3 phase 3 wires

Phase :

3 phase 4 wires

Product Certifications :

UL Listed

Product Or Component Type :

Load Center

short-circuit current :

65 kA

Surface Finish :

Baked enamel Gray

Take-back :

No

Temperature Ambient Operating Range :

104 °F (40 °C)

Temperature Ambient Operating Range :

23 °F (-5 °C)

Tightening Torque :

Cover 20 lb.in

Tightening Torque :

Main lugs 50 lb.in, AWG 6...AWG 2/0, aluminium/copper

Unit Type of Package 2 :

PAL

UNSPSC Classification v19 :

39121101

UNSPSC Classification v23 :

39121101

Volume of Package 2 :

1258526.515 cm3

Warranty :

18 months

Width :

14.3 in (362 mm)

PDF :

https://iportal2.schneider-electric.com/Contents/docs/DIGEST%20178_CATALOG.PDF
