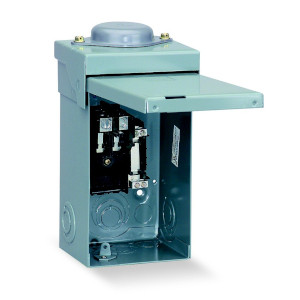

QO2L40RB

[Ue] rated operational voltage :

120/240 V AC~~

AWG Gauge :

AWG 12...AWG 6 aluminium

AWG Gauge :

AWG 14...AWG 6 copper

box number :

1R

Brand :

Square D

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon footprint (kg CO2 eq, Total Life cycle) :

11

Circularity Profile :

No need of specific recycling operations

Cover Type :

Surface cover

Device Composition :

Grounding bar (ordered separately)

Electrical Connection :

Lugs

Enclosure Material :

Welded galvannealed steel

Final Result for Connectable :

Not connectable

Final Result for Flywheel performance tracking :

Non Flywheel

Global Keywords :

1ph

Global Keywords :

2CIR

Global Keywords :

2ckt

Global Keywords :

2sp

Global Keywords :

40 A

Global Keywords :

Loadcenter

Global Keywords :

NEMA 3R

Global warming ; Total life cycle? :

11 kg CO2 eq.

Height :

9.4 in (238 mm)

Line Rated Current :

40 A

load center type :

Fixed Mains (lugs)

Manufacturer :

Schneider Electric

Material :

Tin plated aluminium: busbar

NEMA degree of protection :

NEMA 3R weatherproof enclosure

Number Of Circuits :

2

number of spaces :

2

number of tandem circuit breakers :

0

Number of Units in Package 2 :

213

Package 2 Height :

40.00 in (101.600 cm)

Package 2 Length :

48.00 in (121.920 cm)

Package 2 Weight :

1063.509 lb(US) (482.399 kg)

Package 2 width :

40.00 in (101.600 cm)

Packaging made with recycled cardboard :

No

Packaging without single use plastic :

No

Phase :

1 phase 3 wires

Product Certifications :

UL Listed

Product Or Component Type :

Load Center

short-circuit current :

65 kA

Surface Finish :

Baked enamel Gray

Take-back :

No

Temperature Ambient Operating Range :

104 °F (40 °C)

Temperature Ambient Operating Range :

23 °F (-5 °C)

Tightening Torque :

Main lugs 35 lb.in, AWG 12...AWG10, aluminium/copper

Tightening Torque :

Main lugs 35 lb.in, AWG 14...AWG 10, aluminium/copper

Tightening Torque :

Main lugs 40 lb.in, AWG 8...AWG 4, aluminium/copper

Unit Type of Package 2 :

PAL

UNSPSC Classification v19 :

39121101

UNSPSC Classification v23 :

39121101

Volume of Package 2 :

1258526.515 cm3

Warranty :

18 months

Width :

4.9 in (124 mm)

PDF :

https://iportal2.schneider-electric.com/Contents/docs/SQD-QO2L40RB_DATA%20SHEET.PDF
