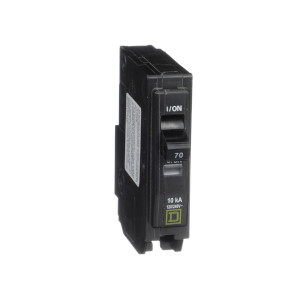

Mini circuit breaker, QO, 70A, 1 pole, 120/240 VAC, 10 kA, plug in mount
- [Ue] rated operational voltage : 120 V AC~~
- [Ue] rated operational voltage : 120/240 V AC
- AWG Gauge : AWG 8...AWG 2 copper or aluminium
- Brand : Square D
- breaking capacity : 10 kA 120 V AC
- breaking capacity : 10 kA 120/240 V AC
- By Schneider : Yes
- Carbon footprint (kg CO2 eq, Total Life cycle) : 18
- circuit breaker application : HACR rated
- circuit breaker type : Standard
- Circularity Profile : No need of specific recycling operations
- Depth : 2.9 in (74 mm)
- Electrical Connection : Box lugs
- Final Result for Connectable : Not connectable
- Final Result for Flywheel performance tracking : Non Flywheel
- Global Keywords : 10 kA
- Global Keywords : 120 / 240 VAC
- Global Keywords : 1P
- Global Keywords : 70 A
- Global Keywords : CB
- Global Keywords : Miniature
- Global Keywords : Plugin
- Global warming ; Total life cycle? : 18 kg CO2 eq.
- Halogen content performance : Halogen free product
- Height : 3.1 in (79 mm)
- Line Rated Current : 70 A
- Manufacturer : Schneider Electric
- Mounting Mode : Plug-in
- Net Weight : 0.311 lb(US) (0.141 kg)
- number of spaces required : 1
- Number of Units in Package 2 : 4032
- Package 2 Height : 40.00 in (101.6 cm)
- Package 2 Length : 48.00 in (121.92 cm)
- Package 2 Weight : 1263.135 lb(US) (572.948 kg)
- Package 2 width : 40.00 in (101.6 cm)
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : Yes
- Product Certifications : CSA
- Product Certifications : UL Listed
- Product Or Component Type : Miniature circuit-breaker
- REACh free of SVHC : Yes
- SCIP Number : Af42fb01-813d-40c0-ae28-b8b3299dbc99
- Take-back : No
- Temperature Ambient Operating Range : 104 °F (40 °C)
- Tightening Torque : 44.3 lbf.in (5 N.m)
- Toxic heavy metal free : Yes
- Type Of Network : 1P
- Unit Type of Package 2 : PAL
- UNSPSC Classification v19 : 39121603
- UNSPSC Classification v23 : 39121603
- Volume of Package 2 : 1258526.515 cm3
- Warranty : 18 months
- Width : 0.7 in (19 mm)
