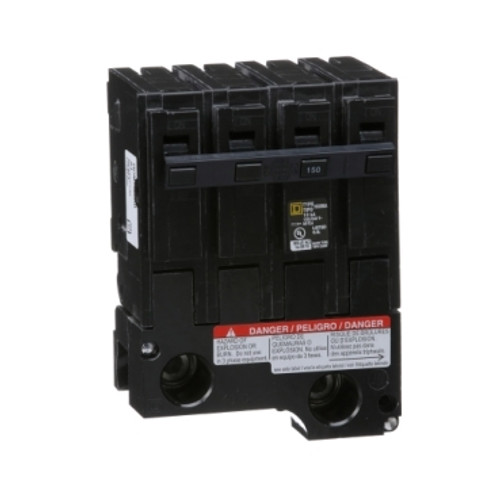

HOM2150

[Ue] rated operational voltage :

120/240 V AC~~

AWG Gauge :

1 x AWG 4...300 kcmil ( aluminium/copper )

Brand :

Square D

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon footprint (kg CO2 eq, Total Life cycle) :

26

circuit breaker application :

HACR rated

circuit breaker type :

Standard

Circularity Profile :

No need of specific recycling operations

Depth :

2.98 in (75.69 mm)

Electrical Connection :

Box lugs

Final Result for Connectable :

Not connectable

Final Result for Flywheel performance tracking :

Non Flywheel

Global Keywords :

150A

Global Keywords :

Homeline

Global Keywords :

Miniature circuit breaker

Global Keywords :

Plug in mount

Global warming ; Total life cycle? :

26 kg CO2 eq.

Height :

3.13 in (79.50 mm)

Line Rated Current :

150 A

Manufacturer :

Schneider Electric

Mounting Mode :

Plug-in

number of spaces required :

2

Number of Units in Package 2 :

1728

Package 2 Height :

43.50 in (110.490 cm)

Package 2 Length :

48.00 in (121.920 cm)

Package 2 Weight :

3042.0003 lb(US) (1379.827 kg)

Package 2 width :

40.00 in (101.600 cm)

Packaging made with recycled cardboard :

No

Packaging without single use plastic :

Yes

Product Certifications :

UL Listed

Product Or Component Type :

Miniature circuit-breaker

short-circuit current :

10 kA

Take-back :

No

Temperature Ambient Operating Range :

104 °F (40 °C)

Tightening Torque :

35.4 lbf.in (4.0 N.m) (AWG 4...AWG 2/0)

Type Of Network :

4P

Unit Type of Package 2 :

PAL

UNSPSC Classification v19 :

39121603

UNSPSC Classification v23 :

39121603

Volume of Package 2 :

1368647.585 cm3

Warranty :

Lifetime

Width :

2 in (50.8 mm)

PDF :

https://iportal2.schneider-electric.com/Contents/docs/SQD-HOM2150_DATA%20SHEET.PDF
