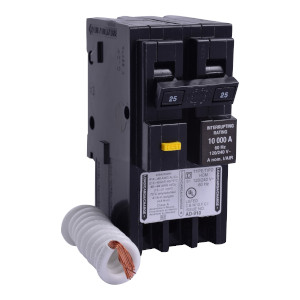

MINIATURE CIRCUIT BREAKER|Current Rating : 20 A |Voltage Rating : 120/240 V AC |Number of Poles : 2P |Short Circuit Current Rating : 10 kA |Circuit Breaker Type : Ground fault protecting class A 6 mA
- [Ue] rated operational voltage : 120/240 V AC~~
- AWG Gauge : 1 x AWG 12...AWG 4 ( aluminium )
- AWG Gauge : 1 x AWG 14...AWG 6 ( copper )
- Brand : Square D
- By Schneider : Yes
- Carbon footprint (kg CO2 eq, Total Life cycle) : 42
- circuit breaker application : HACR rated
- circuit breaker type : Ground fault protecting class A 6 mA
- Depth : 2.98 in (75.69 mm)
- Electrical Connection : Screw clamp terminals
- Final Result for Connectable : Not connectable
- Final Result for Flywheel performance tracking : Non Flywheel
- Global Keywords : 20 A
- Global Keywords : 20 Amp
- Global Keywords : 240 VAC
- Global Keywords : 240V AC
- Global Keywords : 2P
- Global Keywords : 2-pole
- Global Keywords : Grd-fault
- Global Keywords : Home line
- Global Keywords : Home-line
- Global Keywords : Mcb
- Global Keywords : Miniature cb
- Global Keywords : Plug-in
- Global Keywords : Two-pole
- Global Keywords : Underwriter
- Global warming ; Total life cycle? : 42 kg CO2 eq.
- Halogen content performance : Halogen free product
- Height : 3.13 in (79.50 mm)
- Line Rated Current : 20 A
- Manufacturer : Schneider Electric
- Mounting Mode : Plug-in
- number of spaces required : 2
- Number of Units in Package 2 : 33
- Package 2 GTIN : 30785901303207
- Package 2 Height : 5.50 in (13.970 cm)
- Package 2 Length : 21.00 in (53.340 cm)
- Package 2 Weight : 38.660 lb(US) (17.536 kg)
- Package 2 width : 14.00 in (35.560 cm)
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : Yes
- Product Certifications : UL Listed
- Product Or Component Type : Miniature circuit-breaker
- short-circuit current : 10 kA
- Take-back : No
- Temperature Ambient Operating Range : 104 °F (40 °C)
- Type Of Network : 2P
- Unit Type of Package 2 : CAR
- UNSPSC Classification v19 : 39121603
- UNSPSC Classification v23 : 39121603
- Volume of Package 2 : 26497.882 cm3
- Warranty : 18 months
- Width : 2 in (50.8 mm)
