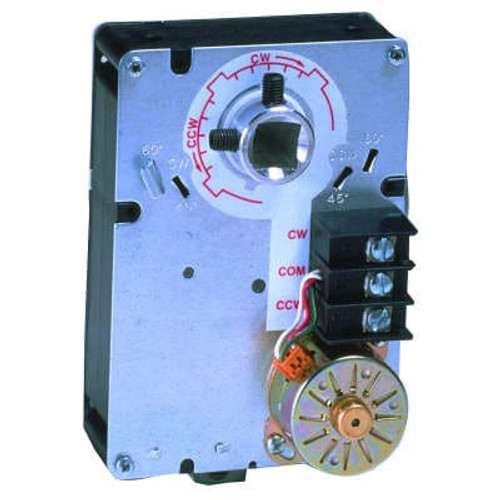

Product pictures shown represent the general type of component listed.The product you select might not exactly match the photo.

ML6161B2032/U

$0.00
(No reviews yet) Write a Review
SKU:
ML6161B2032/U
Application :
HVAC
Weight (lb) :
1.5 lb
Weight (kg) :
0.68 kg
Item Type :
Product
Mounting :
Direct Coupled
Frequency :
50 Hz, 60 Hz
Approvals, Underwriters Laboratories Inc. :
UL873, Plenum Rated
Tradeline Value :
Tradeline
Electrical Connections :
Screw terminals
Operating Humidity Range (% RH) :
5 to 95% RH, non-condensing
Supply Voltage :
24 Vac ±20%
Power Consumption :
Driving-- 1.8 VA
Shipping and Storage Temperature Range (F) :
20 F to 130 F
Shipping and Storage Temperature Range (C) :
-18 C to +54 C
Approvals, CE :
89/336/ECC, 73/23/EEC
Approvals, Canadian Underwriters Laboratories Inc. :
cUL C22.2 No. 24-93
Ambient Temperature Range (F) :
20 F to 125 F
Ambient Temperature Range (C) :
-18 C to +50 C
Approvals, C-Tick :
N314
Environmental, Electrical or Ingress Protection Rating :
NEMA 1
Internal Auxiliary Switch :
Maximum Noise Rating :
Driving (dB(A) @ 1m)-- 45
Stroke :
90 degrees
Shaft Dimensions (in.) :
3/8 to 1/2 in. square or round
Actuator Type :
Damper
Control Signal :
Floating, SPDT, On/Off
Fail Safe Mode :
Non-Spring Return
Torque Rating (lb-in.) :
35 lb-in.
Torque Rating (Nm) :
4 Nm
Additional Torque Ratings (lb-in.) :
Maximum Stall-- 70 lb-in.
Additional Torque Ratings (Nm) :
Maximum Stall-- 8 Nm
External Auxiliary Switches Available :
Yes, 201052B
Rotation to Open :
By wiring
Timing, Nominal :
Driving @ 60 Hz-- 420 sec
Shaft Adapter Type :
Aluminum Hub, two set screws
Manual operation :
Declutch mechanism
Shaft Dimensions (mm) :
10 to 13 mm square/round
